L105.VPM4.2.4 EG35
Inserts
Part number L105VPM424EG35

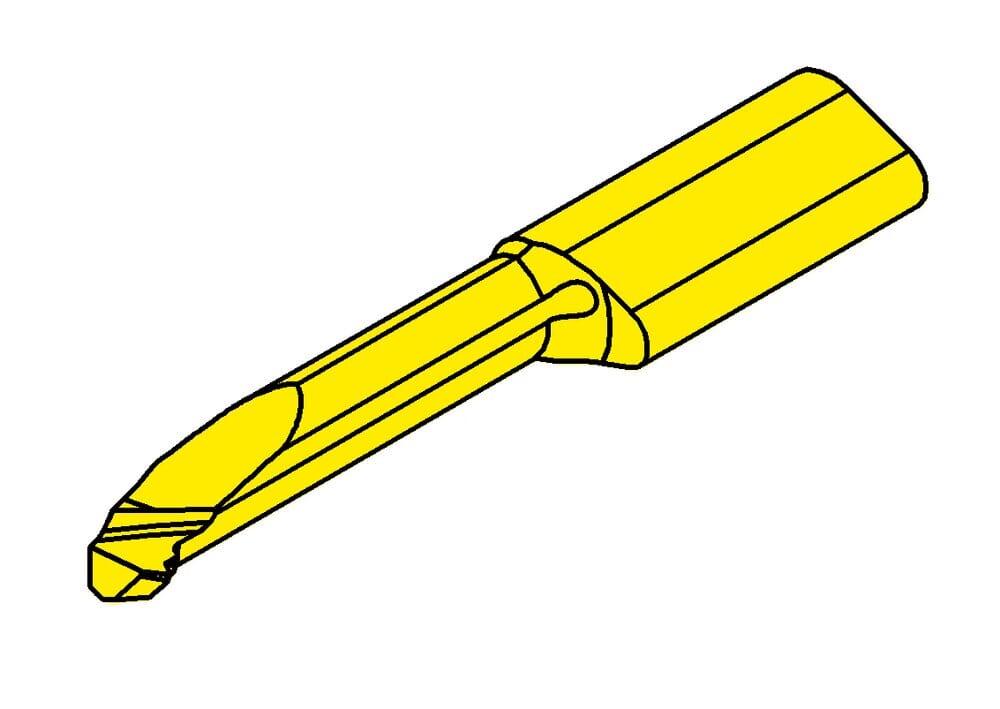

HORN Inserts L105.VPM4.2.4 EG35 for Gewinden
Please note:Technical instructions
Thred pitch maximum (TPX)
0.7 mm
Body diameter (BD)
6.4 mm
Cutting depth maximum (CDX)
0.55 mm
Minimum bore diameter (DMIN)
3.2 mm
Usable length (LU)
15 mm
Overall length (OAL)
30 mm
profile depth insert (PDPT)
0.388 mm
profile distance x (PDX)
0.4 mm
Thread pitch minimum (TPN)
0.7 mm
Funktional width (WF)
1.5 mm
Profile included angle (PNA)
60 °
Dimension a at working width (WFA)
2.9 mm
Cutting edge count (CEDC)
1
| Downloads | |
|---|---|
| L105_VPM4_2_4_EG35-DXF.DXF | Download |
| L105_VPM4_2_4_EG35-STP.STP | Download |
| L105_VPM4_2_4_EG35-ISO.XML | Download |
| L105_VPM4_2_4_EG35-DIN.XML | Download |
| Download all files | |
