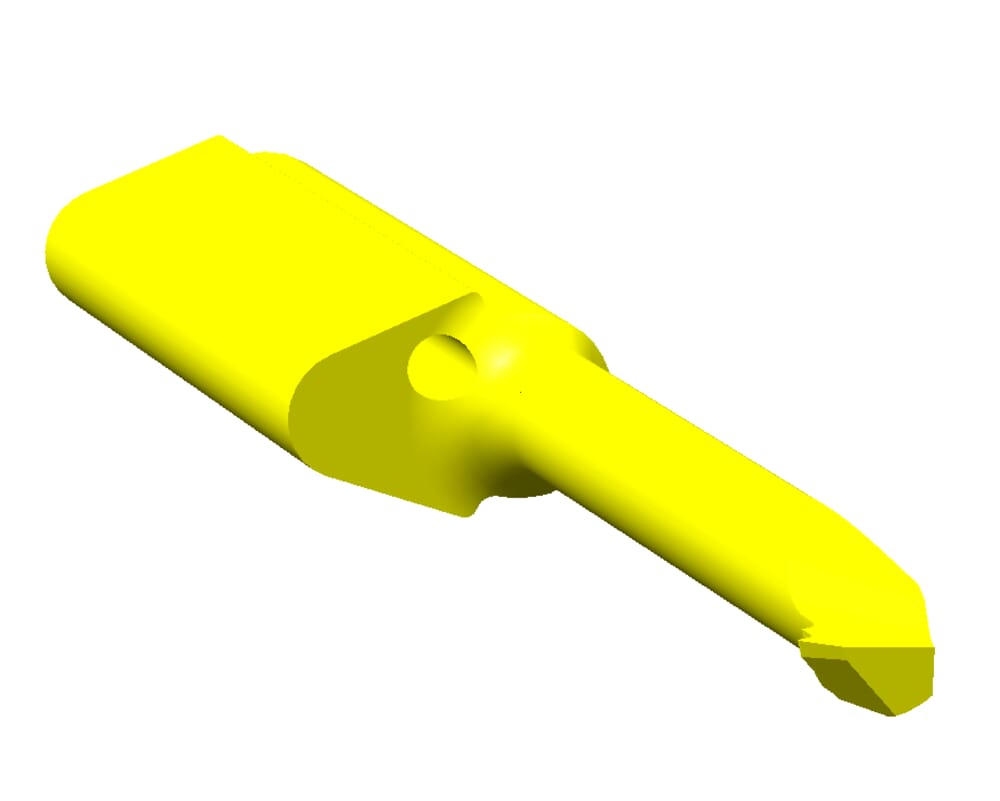

L105.VPM4.3.4 EG35
Inserts
Part number L105VPM434EG35
HORN Inserts L105.VPM4.3.4 EG35 for Gewinden
Please note:Technical instructions
Pitch (P)
0.7
mm
Smallest bore diameter (Dmin)
3.2
mm
Setting length (E)
0.4
mm
Cutting insert width (a)
2.9
mm
Setting range radial (f)
1.5
mm
Neck diameter (d)
2.1
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
Width of blank (b)
6.4
mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
35
mm
number-of-teeth
1
St.
Neck length (l2)
20
mm
