L105.VPM5.4.5 EG35
Inserts
Part number L105VPM545EG35

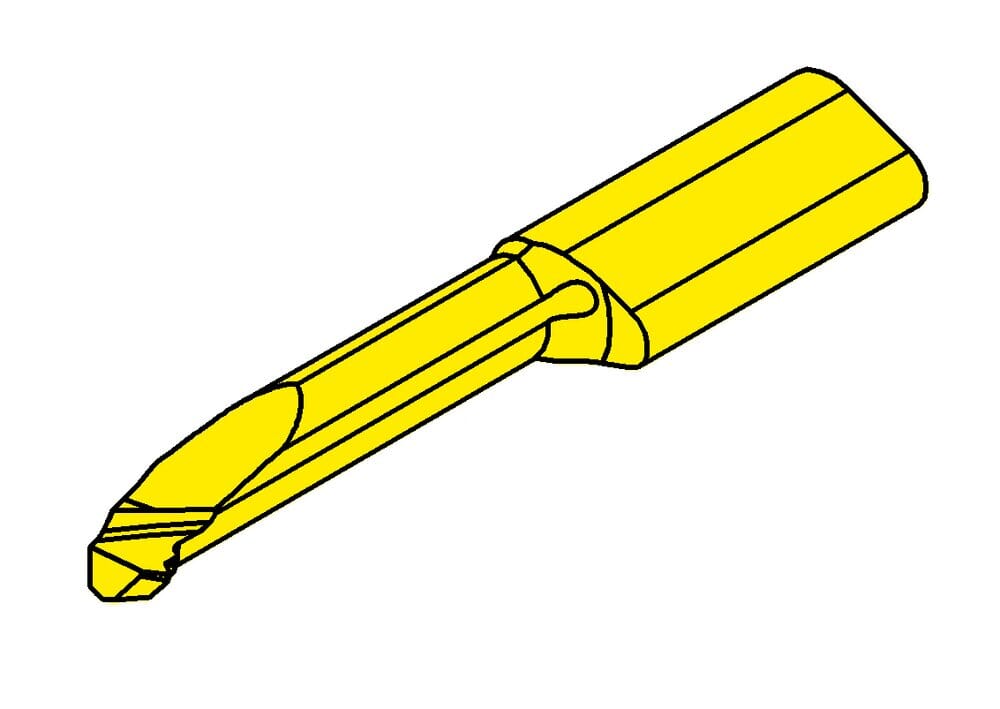

HORN Inserts L105.VPM5.4.5 EG35 for Gewinden
Please note:Technical instructions
Neck diameter (d)
2.8 mm
Pitch (P)
0.8 mm
Smallest bore diameter (Dmin)
4.1 mm
Setting length (E)
0.5 mm
Cutting insert width (a)
3.7 mm
Setting range radial (f)
2 mm
Neck length (l2)
25 mm
Katalog_SSC
105125
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
40 mm
number-of-teeth
1 St.
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| Download all files | |
