L107.0100.2.00 TH35
Insert
Part number L1070100200TH35

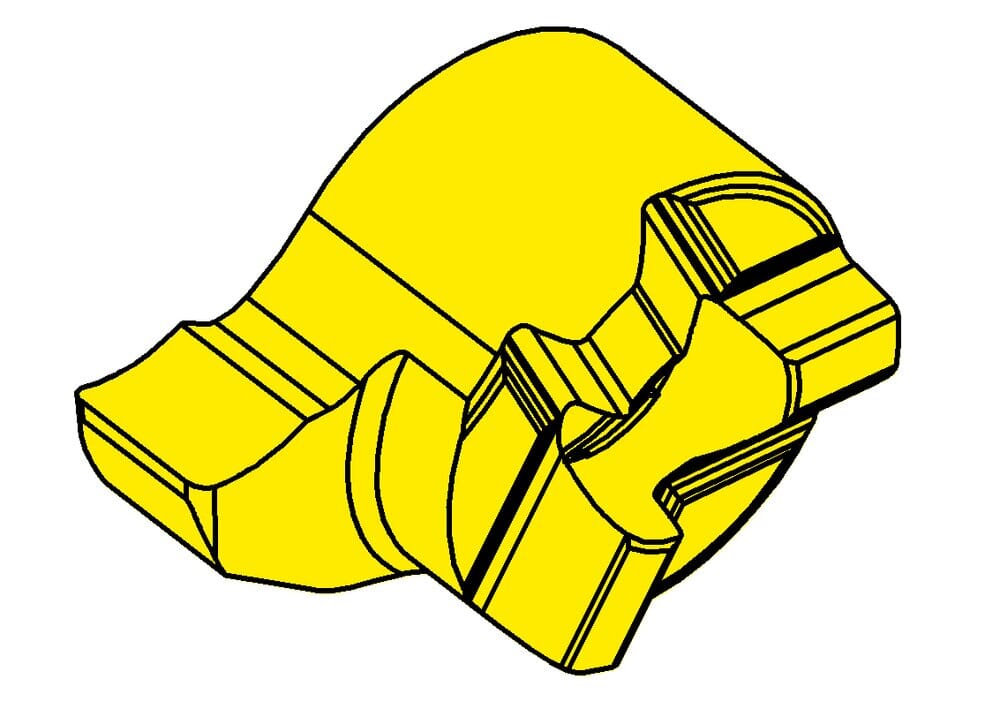

HORN Insert L107.0100.2.00 TH35 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.3
mm
Tooth diameter, head diameter (d)
5.2
mm
Setting range radial (f)
5
mm
Width of groove (w)
1
mm
Katalog_SSC
107052L
DIN_SSC
HORN-10705284L
ISO_SSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2
mm
Head size (a)
7.6
mm
Downloads | |
---|---|
L1070100200_20210630_165219635.STP | Download |
L1070100200_20210627_180316779.DXF | Download |
Download all files |
