L107.0100.2.00 TH35
Insert
Part number L1070100200TH35
HORN Insert L107.0100.2.00 TH35 for Turning
Please note:Technical instructions

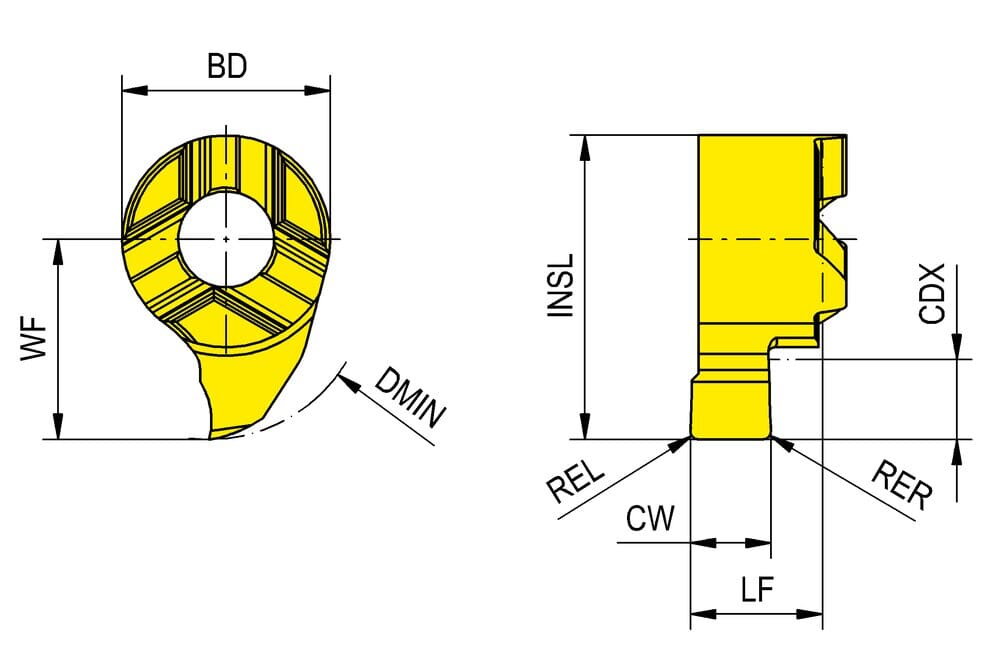

Cutting edge count (CEDC)
1
Funktional width (WF)
5 mm
Functional length (LF)
3.3 mm
Insert length (INSL)
7.6 mm
Minimum bore diameter (DMIN)
8 mm
Cutting width (CW)
1.01 mm
Cutting depth maximum (CDX)
2 mm
Body diameter (BD)
5.2 mm
| Downloads | |
|---|---|
| L107_0100_2_00_TH35-STP.STP | Download |
| L107_0100_2_00_TH35-ISO.XML | Download |
| L107_0100_2_00_TH35-DIN.XML | Download |
| L107_0100_2_00_TH35-DXF.DXF | Download |
| Download all files | |
