L107.0150.1.00 EG55
Insert
Part number L1070150100EG55

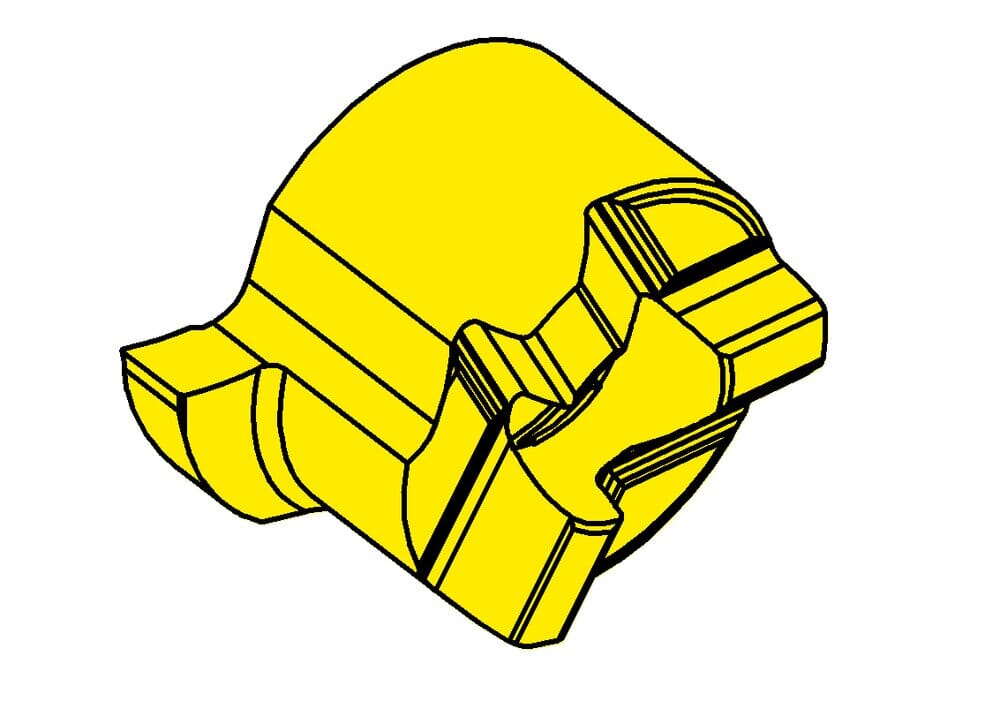

HORN Insert L107.0150.1.00 EG55 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
7
mm
Cutting insert height, Cutting insert thickness (s)
3.3
mm
Tooth diameter, head diameter (d)
5.2
mm
Setting range radial (f)
4
mm
Width of groove (w)
1.5
mm
Katalog_SSC
107052L
DIN_SSC
HORN-10705284L
ISO_SSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1
mm
Head size (a)
6.6
mm
Downloads | |
---|---|
L1070150100_20230112_185611179.STP | Download |
L1070150100_20210627_180359029.DXF | Download |
Download all files |
