L107.0150.1.00 EG55
Insert
Part number L1070150100EG55
HORN Insert L107.0150.1.00 EG55 for Turning
Please note:Technical instructions

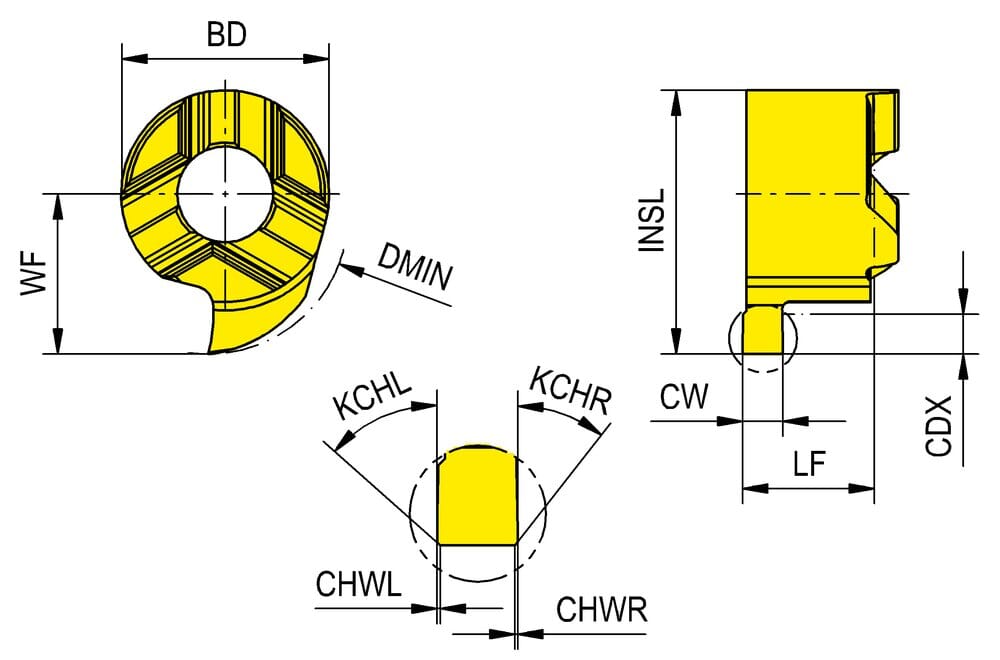

Cutting edge count (CEDC)
1
Corner chamfer angle right hand (KCHR)
45 °
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer width right hand (CHWR)
0.03 mm
Corner chamfer width left hand (CHWL)
0.03 mm
Funktional width (WF)
4 mm
Functional length (LF)
3.3 mm
Insert length (INSL)
6.6 mm
Minimum bore diameter (DMIN)
7 mm
Cutting width (CW)
1.51 mm
Cutting depth maximum (CDX)
1 mm
Body diameter (BD)
5.2 mm
