L107.0150.2.01 EG55

Insert

Part number L1070150201EG55

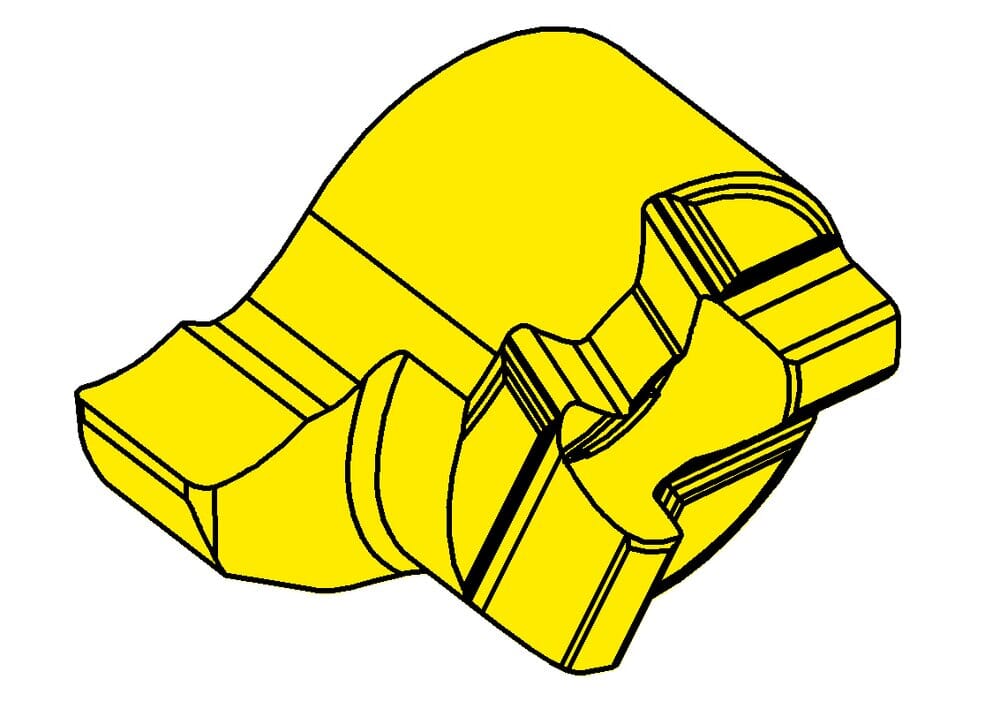

HORN Insert L107.0150.2.01 EG55 for Turning

Setting range radial (f)

5 mm

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.3 mm

Corner radius (r)

0.1 mm

Tooth diameter, head diameter (d)

5.2 mm

Head size (a)

7.6 mm

Width of groove (w)

1.5 mm

Katalog_SSC

107052L

ISO_SSC

HORN107052$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2 mm
