L107.0150.2.01 TH35

Insert

Part number L1070150201TH35

HORN Insert L107.0150.2.01 TH35 for Turning

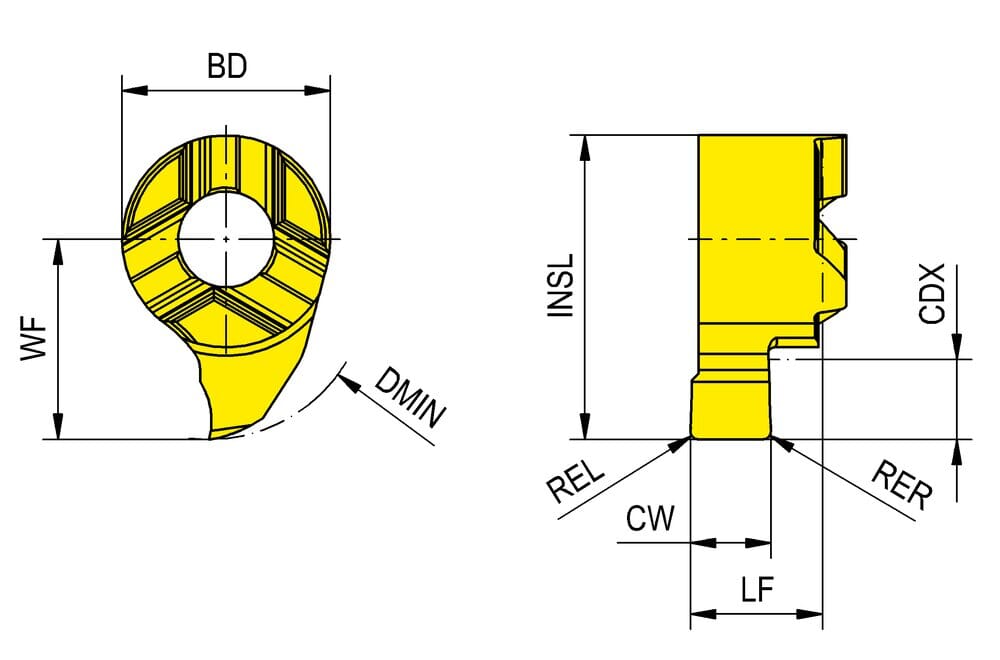

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.3 mm

Corner radius (r)

0.1 mm

Tooth diameter, head diameter (d)

5.2 mm

Setting range radial (f)

5 mm

Width of groove (w)

1.5 mm

Katalog_SSC

107052L

ISOSSC

HORN107052$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2 mm

Head size (a)

7.6 mm
