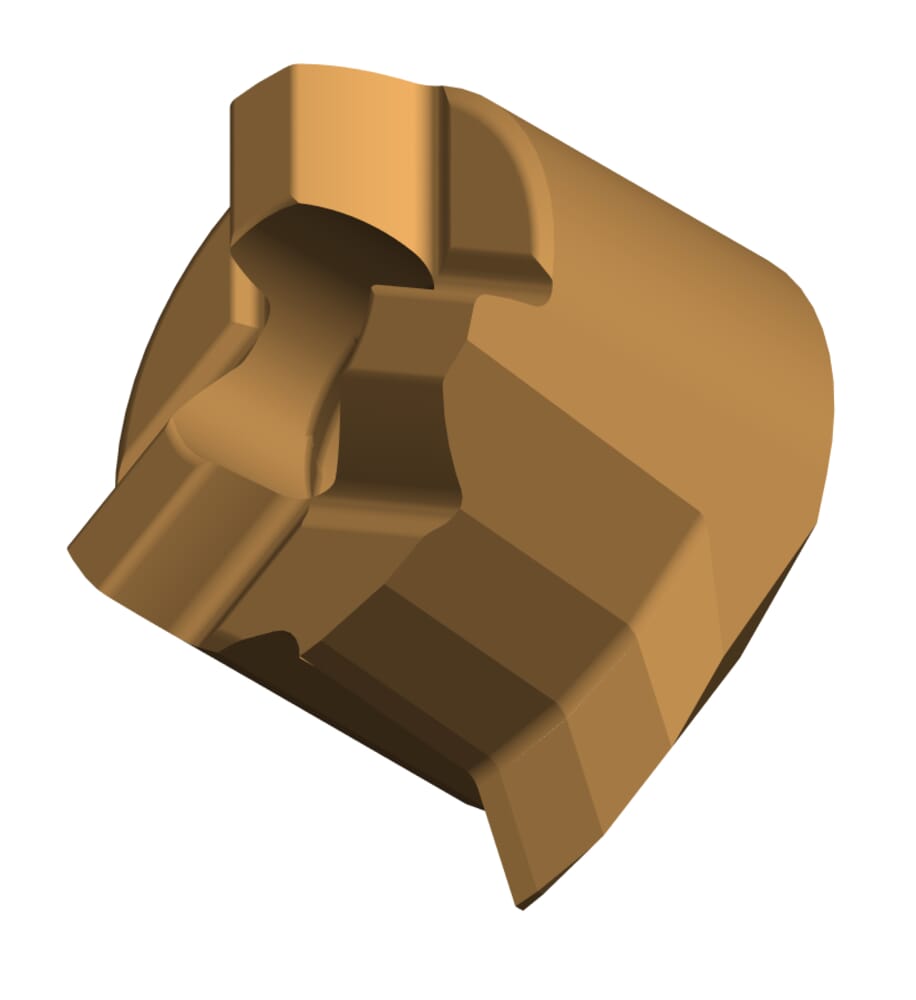

L107.0510.1.01 EG55
Insert
Part number L1070510101EG55
HORN Insert L107.0510.1.01 EG55 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-10705284L
Maximum pitch (Pmax)
1.25
mm
Pitch (P)
1
mm
Smallest bore diameter (Dmin)
7
mm
Cutting insert height, Cutting insert thickness (s)
3.5
mm
Setting length (E)
2.8
mm
Tooth diameter, head diameter (d)
5.2
mm
Cutting insert width (a)
6.6
mm
Setting range radial (f)
4
mm
Katalog_SSC
107052L
ISO_SSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L1070510101_20210630_165437497.STP | Download |
L1070510101_20210627_180633426.DXF | Download |
Download all files |
