L108.0070.00 TH35

insert

Part number L108007000TH35

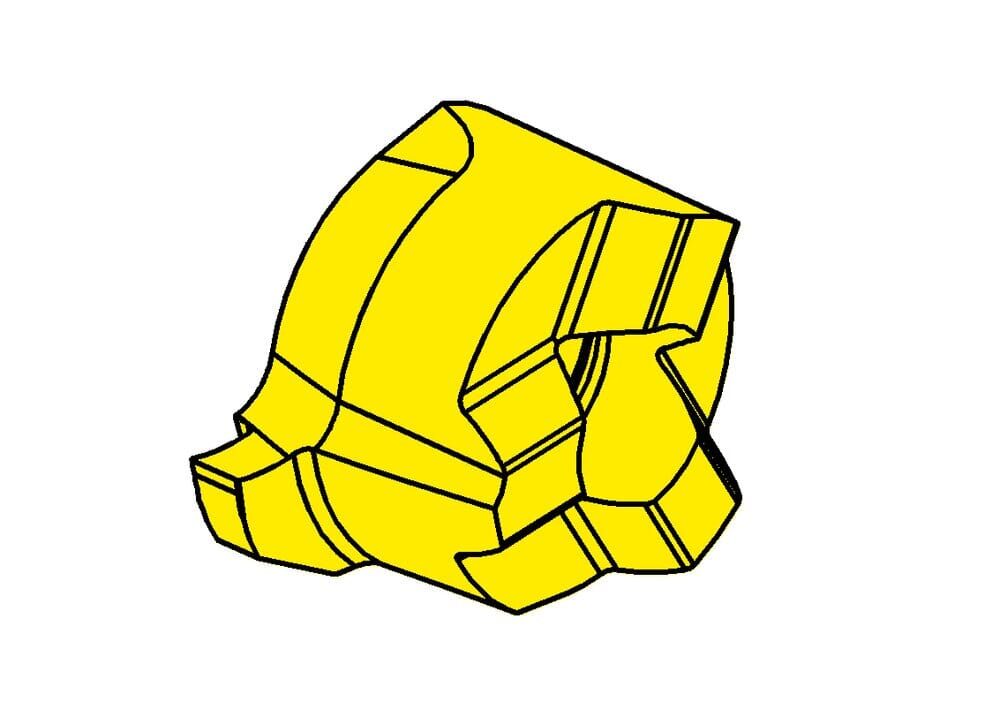

HORN insert L108.0070.00 TH35 for Turning

DIN_SSC

HORN-10806084L

Smallest bore diameter (Dmin)

8 mm

Tooth diameter, head diameter (d)

6 mm

Cutting insert width (a)

7.8 mm

Setting range radial (f)

4.8 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

3.2 mm

Cutting insert thickness, setting length complete (s)

3.6 mm

Nominal range (Nw)

0.7 mm

Maximum milling depth/ depth of groove (tmax)

1 mm

Width of groove (w)

0.74 mm

Katalog_SSC

108060L

ISO_SSC

HORN108060$84L$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

1 St.

Cutting diameter (Ds)

9.6 mm
