L108.0150.02 TN35

Inserts

Part number L108015002TN35

HORN Inserts L108.0150.02 TN35 for Turning

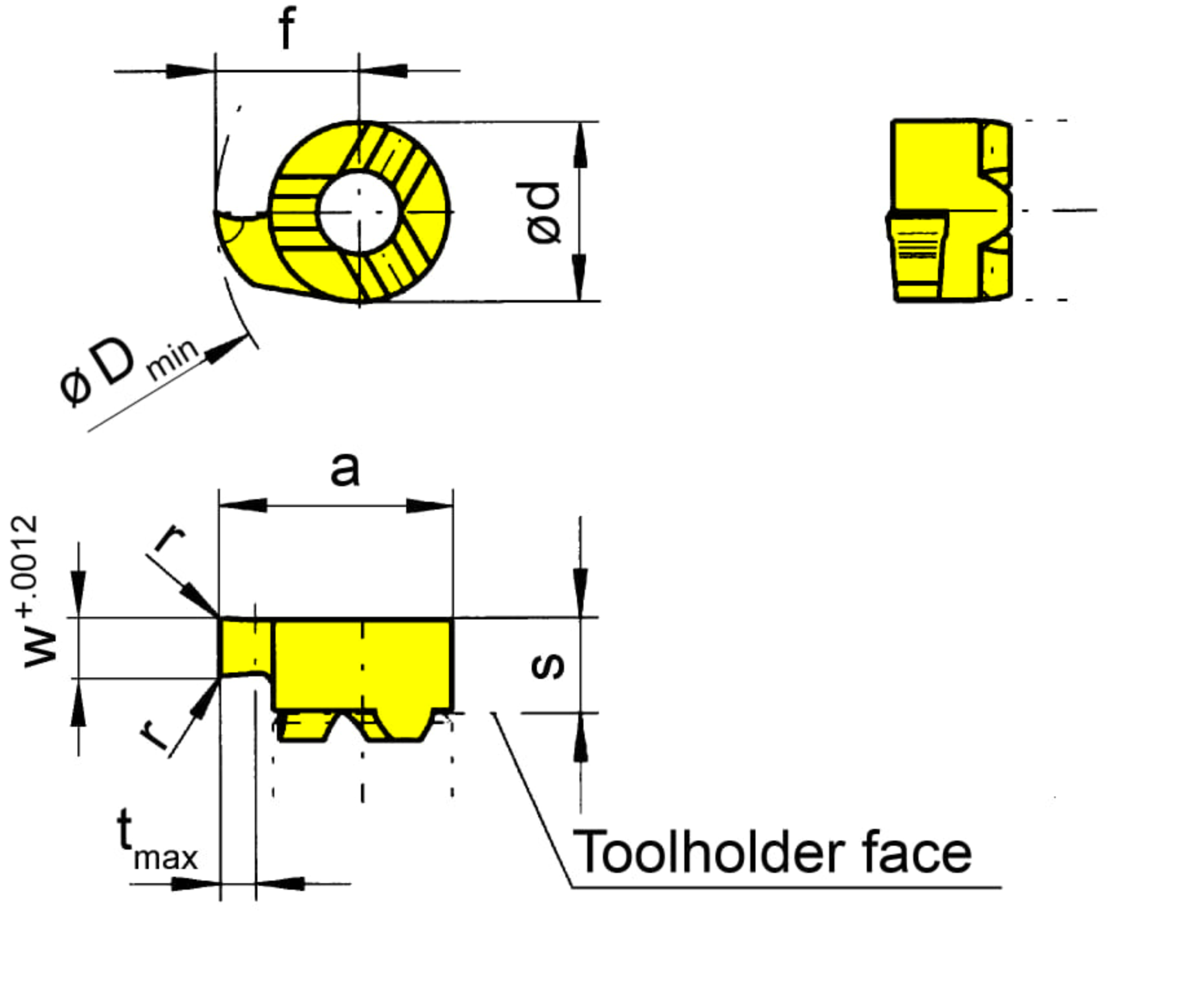

Setting range radial (f)

4.8 mm

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.2 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

6 mm

Head size (a)

7.8 mm

Width of groove (w)

1.5 mm

Katalog_SSC

108060L

ISO_SSC

HORN108060$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

1 mm
