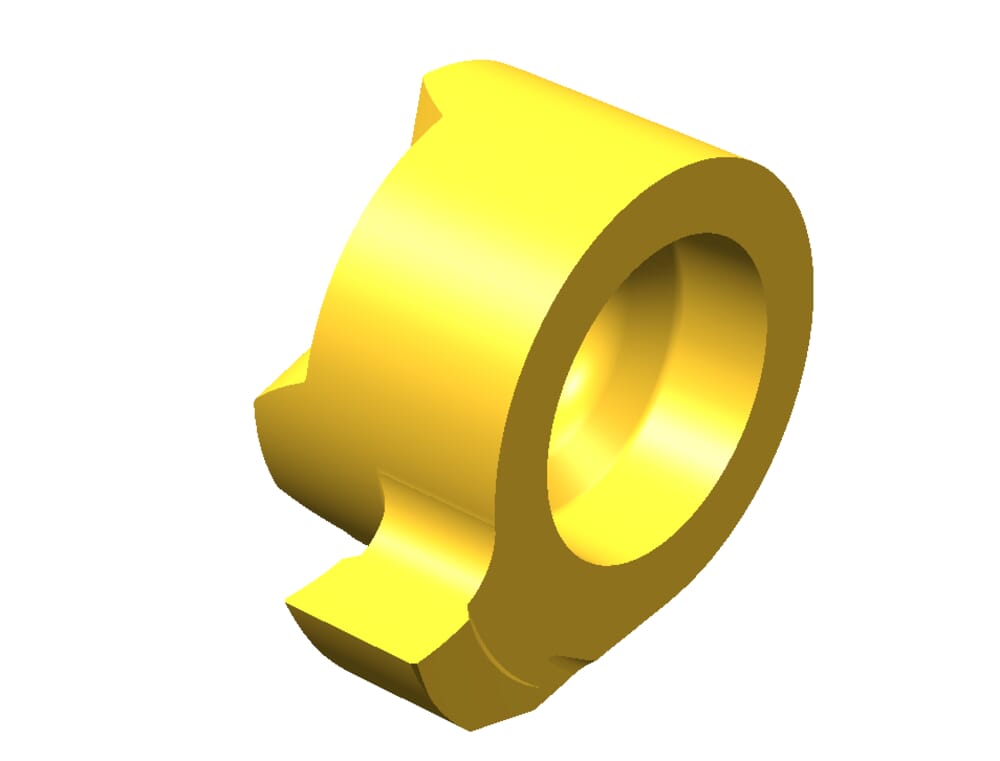

L108.0200.00 TN35

Inserts

Part number L108020000TN35

HORN Inserts L108.0200.00 TN35 for Turning

eclass-shortcut

21-18-20-11

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.2 mm

Tooth diameter, head diameter (d)

6 mm

Setting range radial (f)

4.8 mm

Width of groove (w)

2 mm

Katalog_SSC

108060L

ISO_SSC

HORN108060$84L$$$$$

Maximum depth of groove (tmax)

1 mm

Head size (a)

7.8 mm

Number of teeth (Z)

1 St.

Cutting diameter (Ds)

9.6 mm
