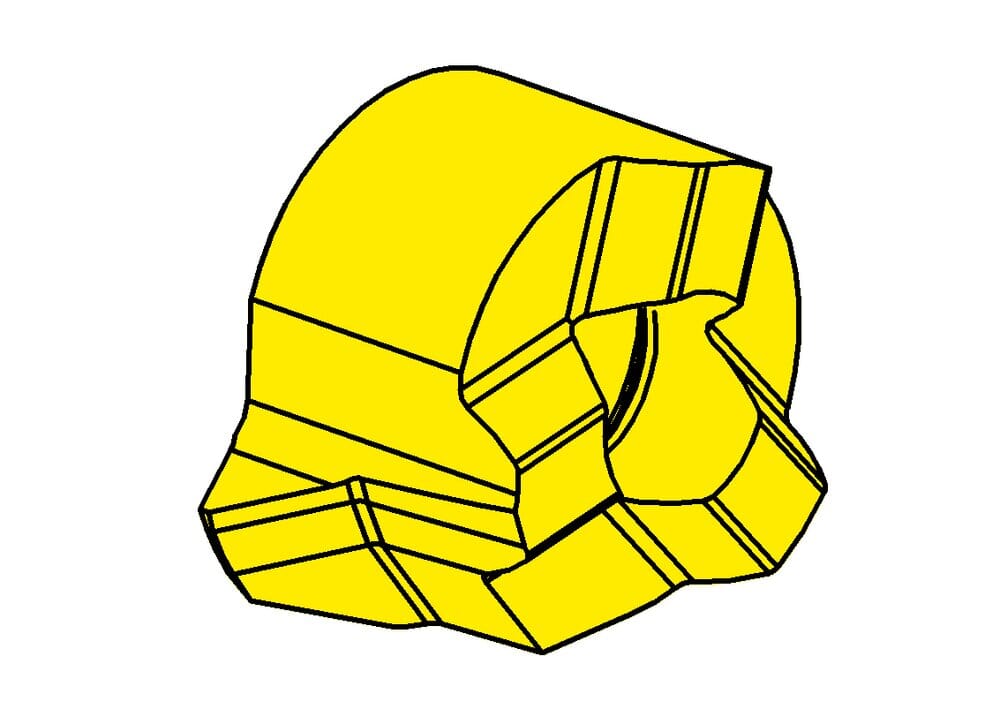

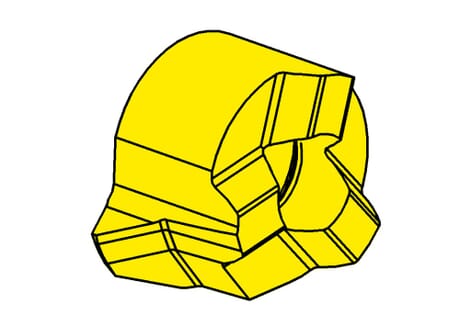

L108.0815.01 TH35

insert

Part number L108081501TH35

HORN insert L108.0815.01 TH35 for Gewinden

Tooth diameter, head diameter (d)

6 mm

Maximum pitch (Pmax)

1.75 mm

Pitch (P)

1.5 mm

Smallest bore diameter (Dmin)

8 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Setting length (E)

2.6 mm

Cutting diameter (Ds)

9.6 mm

Cutting insert width (a)

7.8 mm

Setting range radial (f)

4.8 mm

Katalog_SSC

108060L

ISO_SSC

HORN108060$84L$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

1 St.
