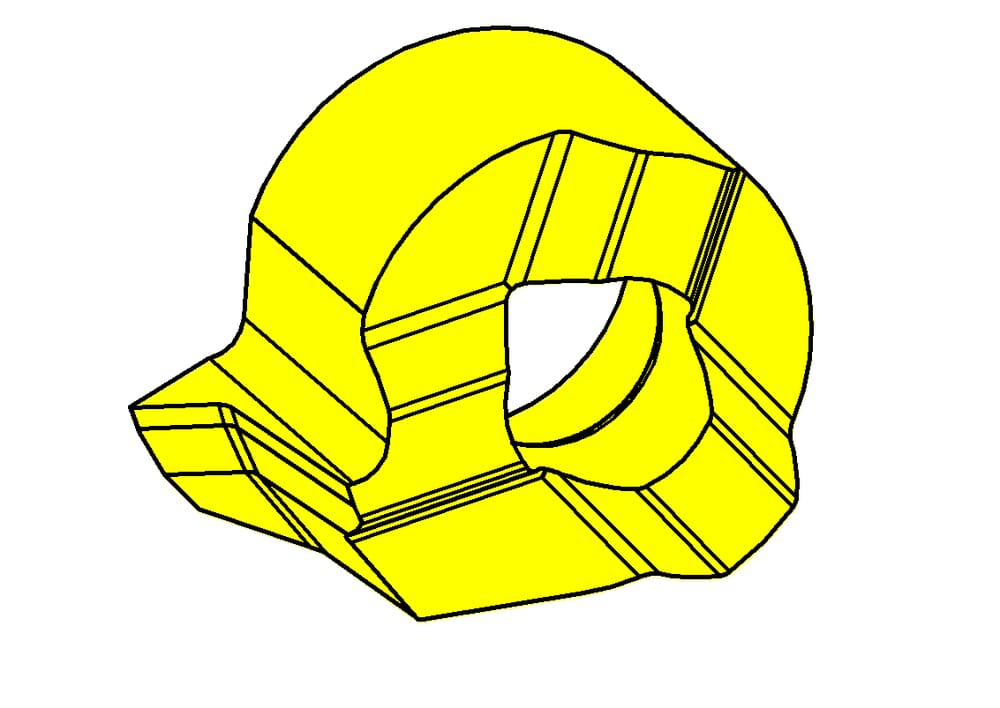

R108020501_PICTO.TIF
R108020501_PICTO.TIF L108081501.TIF

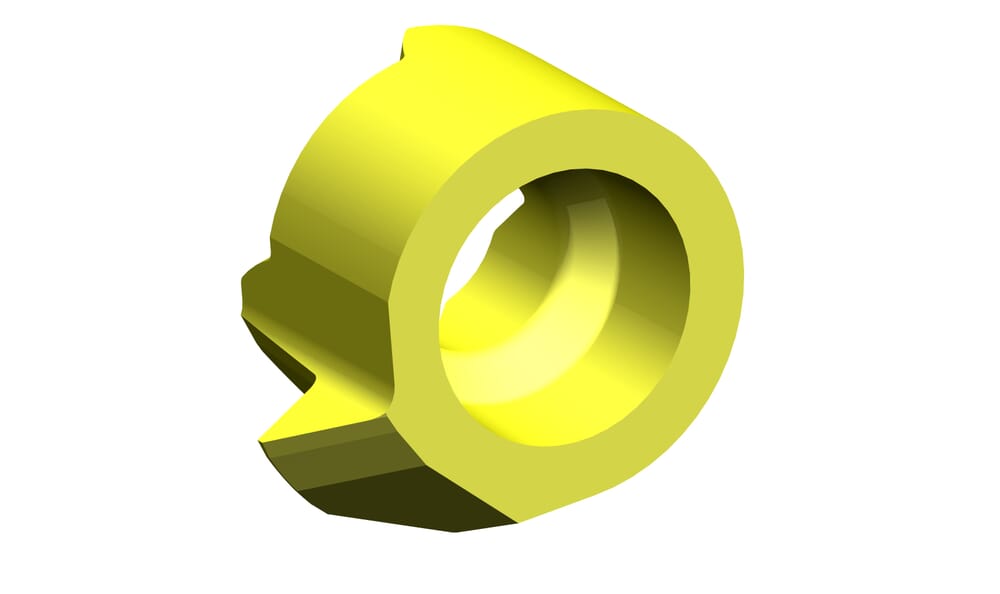

L108.0815.01 TN35

Inserts

GEWINDE_METRISCH.EPS GEWINDE_TEILPROFIL.EPS GEWINDE_INNEN.EPS

Part number L108081501TN35

HORN Inserts L108.0815.01 TN35 for Gewinden

Please note:Technical instructions

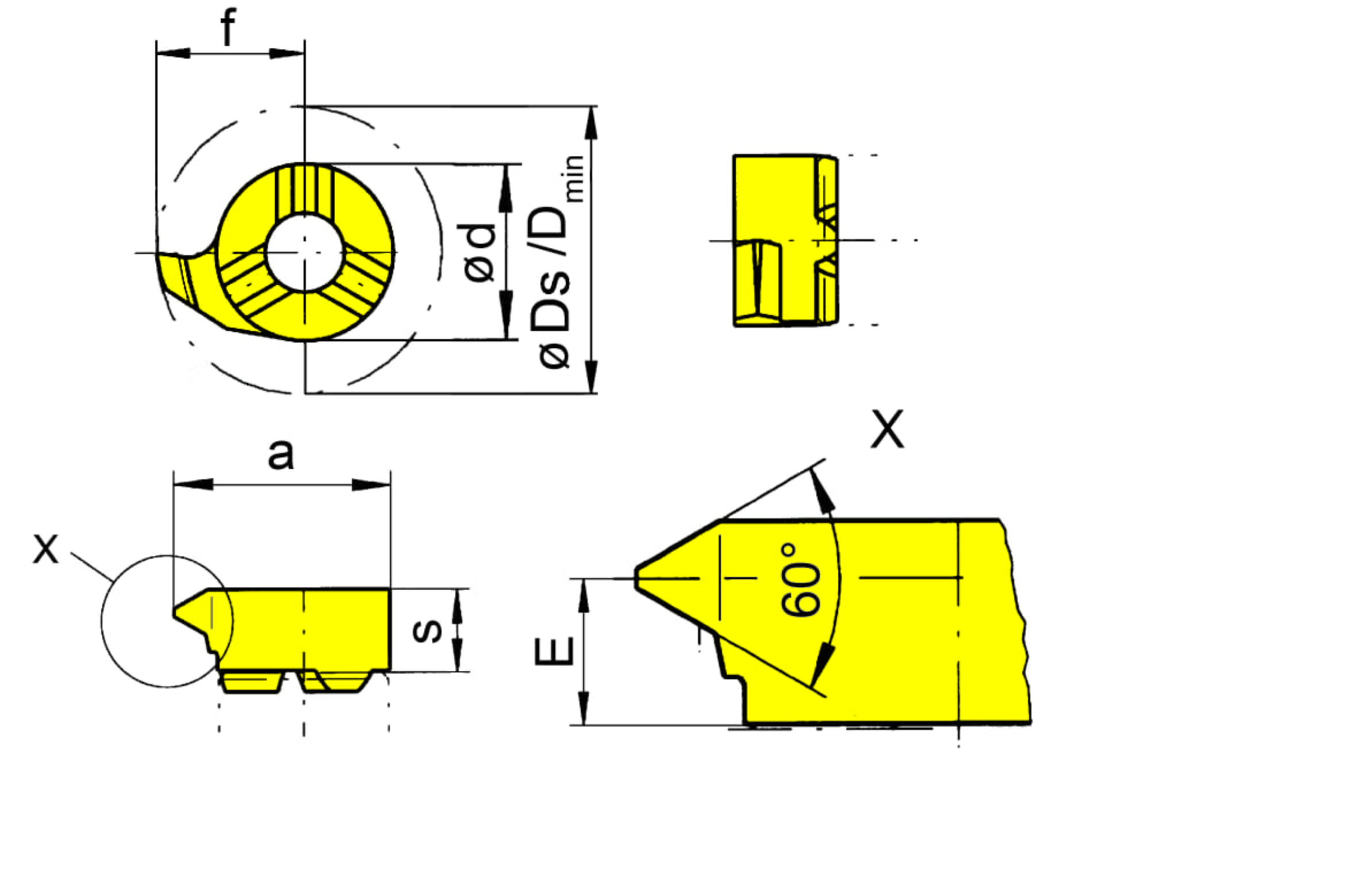

Tooth diameter, head diameter (d)
6 mm
Maximum pitch (Pmax)
1.75 mm
Pitch (P)
1.5 mm
Smallest bore diameter (Dmin)
8 mm
Cutting insert height, Cutting insert thickness (s)
3.6 mm
Setting length (E)
2.6 mm
Cutting diameter (Ds)
9.6 mm
Cutting insert width (a)
7.8 mm
Setting range radial (f)
4.8 mm
Katalog_SSC
108060L
ISO_SSC
HORN108060$84L$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
1 St.
Downloads
L108081501_20230112_201742210.STP Download
L108081501_20210706_231659782.DXF Download
Download all files
