L108.1846.02 MG12
Inserts
Part number L108184602MG12
HORN Inserts L108.1846.02 MG12 for Turning
Please note:Technical instructions

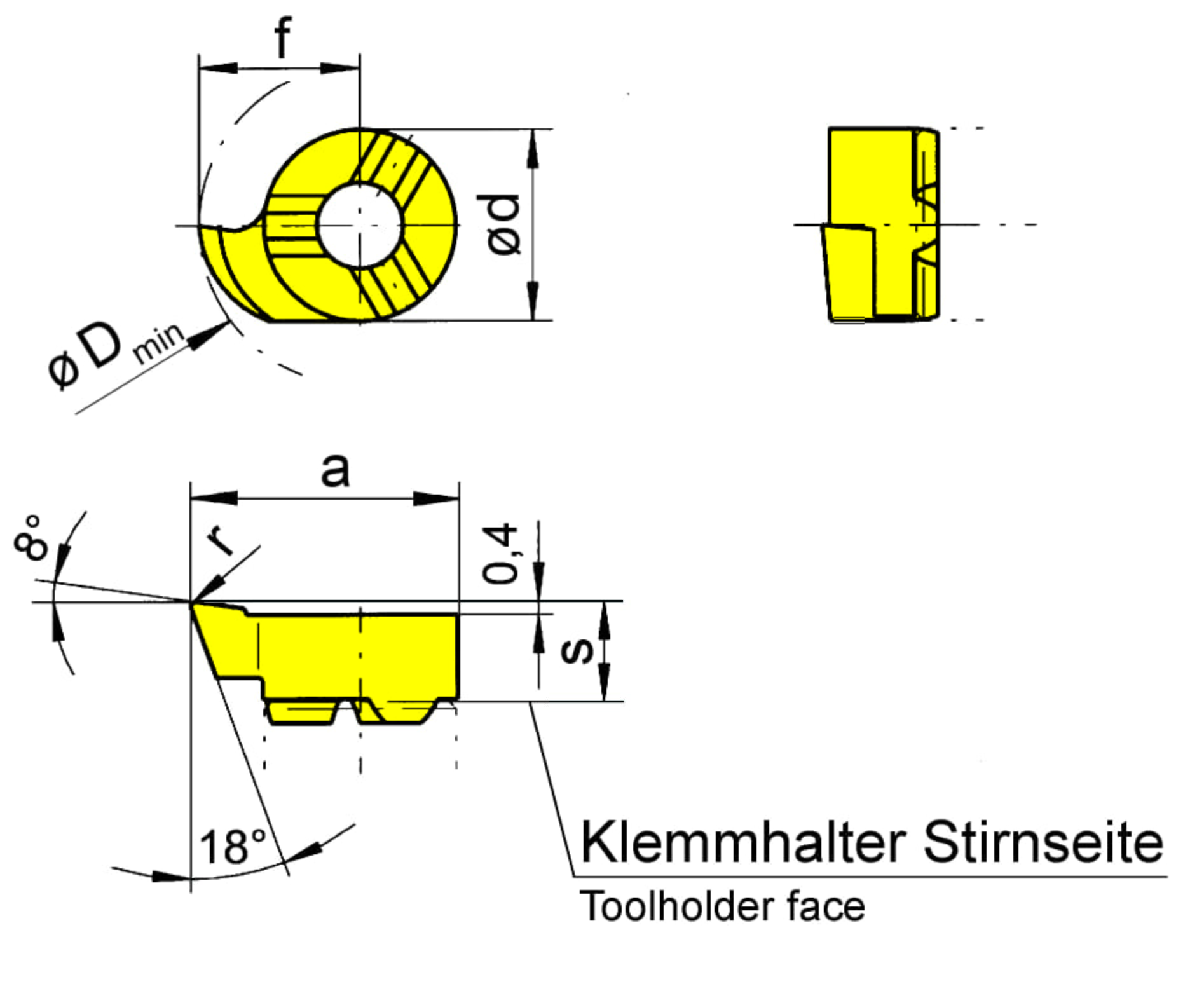

Top radius (r)
0.2
mm
Head size (a)
7.65
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN108060$84L$$$$$
DIN_SSC
HORN-10806084L
Katalog_SSC
108060L
Setting range radial (f)
4.65
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert height, Cutting insert thickness (s)
3.4
mm
Smallest bore diameter (Dmin)
7.8
mm
| Downloads | |
|---|---|
| L108184602_20230112_185940215.STP | Download |
| L108184602_20211119_153249833.DXF | Download |
| Download all files | |
