L109.0150.6.7 TH35
insert
Part number L109015067TH35

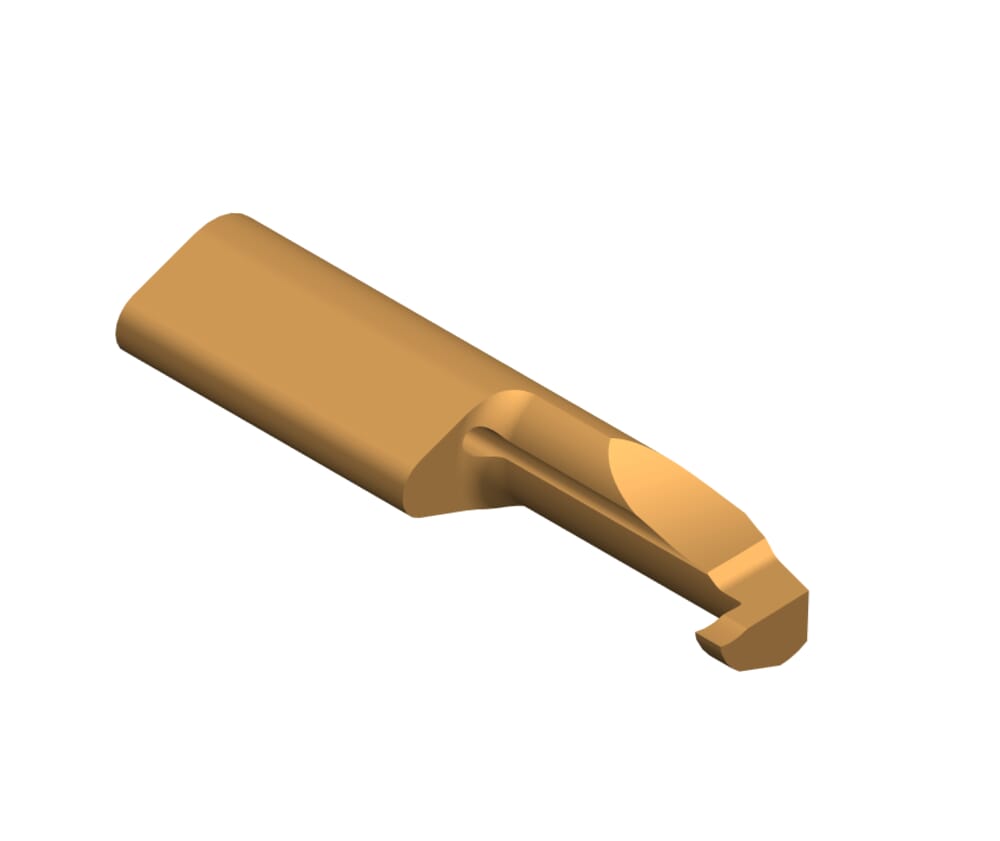

HORN insert L109.0150.6.7 TH35 for Turning
Please note:Technical instructions
Width of groove (w)
1.5 mm
Smallest bore diameter (Dmin)
7 mm
Total length (l5)
53 mm
Setting range radial (f)
3.8 mm
Neck diameter (d)
4 mm
Neck length (l2)
35 mm
Katalog_SSC
109140
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.5 mm
Head size (a)
6.7 mm
