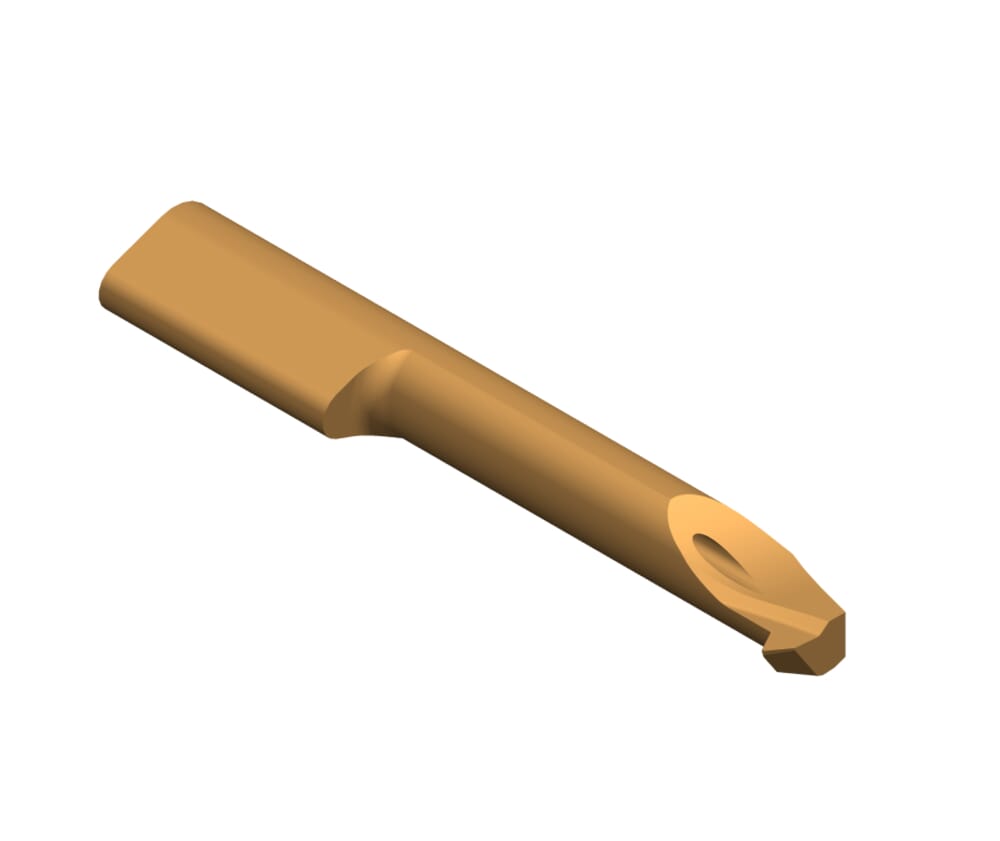

L109.0815.3.7 TH35
insert
Part number L109081537TH35
HORN insert L109.0815.3.7 TH35 for Gewinden
Please note:Technical instructions

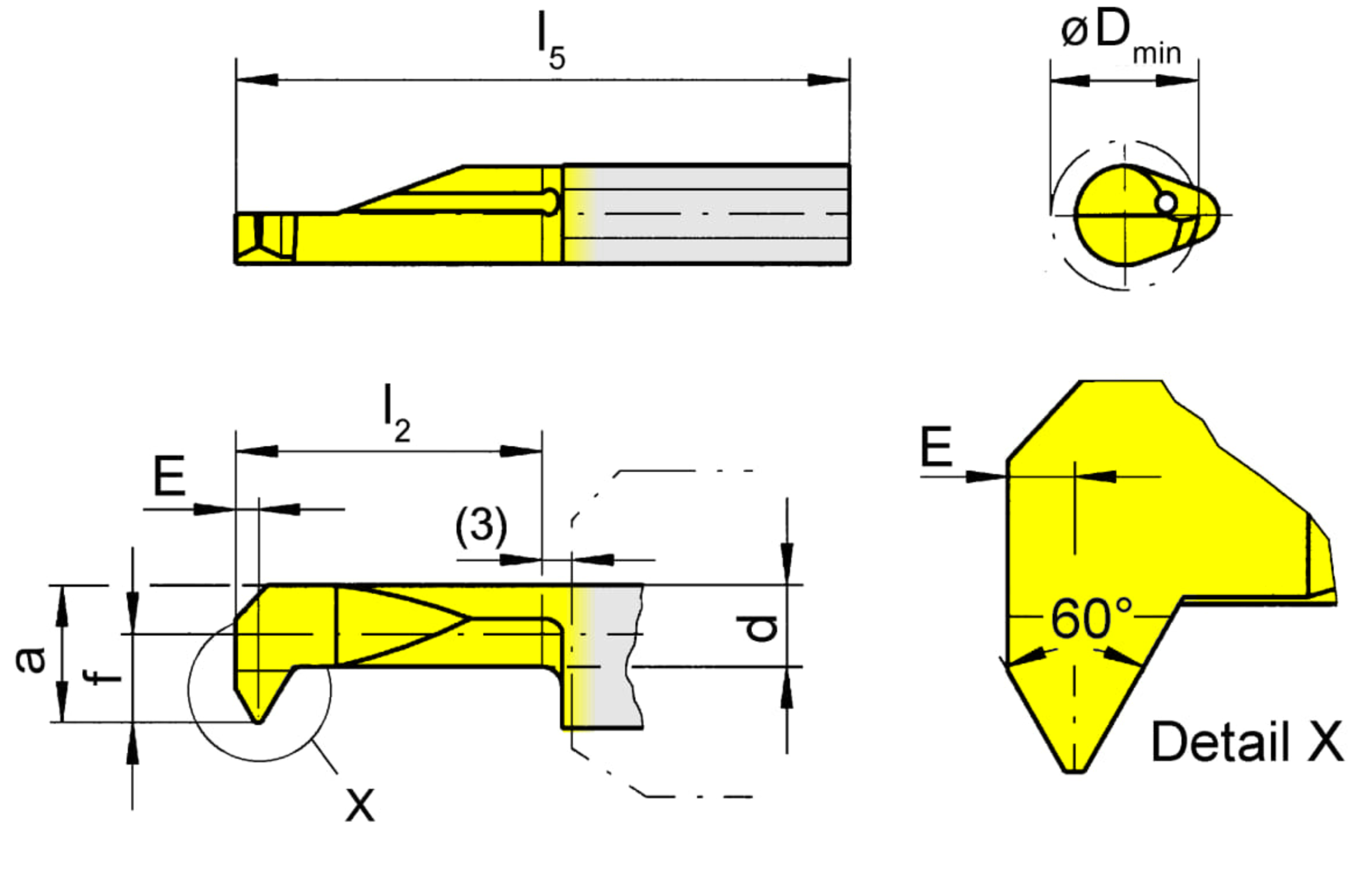

Setting range radial (f)
3.8 mm
Maximum pitch (Pmax)
1.75 mm
Pitch (P)
1.5 mm
Smallest bore diameter (Dmin)
7 mm
Setting length (E)
0.9 mm
Cutting insert width (a)
6.7 mm
Neck length (l2)
20 mm
Neck diameter (d)
5.1 mm
Katalog_SSC
109140
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Cutting insert total length (l5)
38 mm
number-of-teeth
1 St.
