L10P.0100.2.00 TH35

Insert

Part number L10P0100200TH35

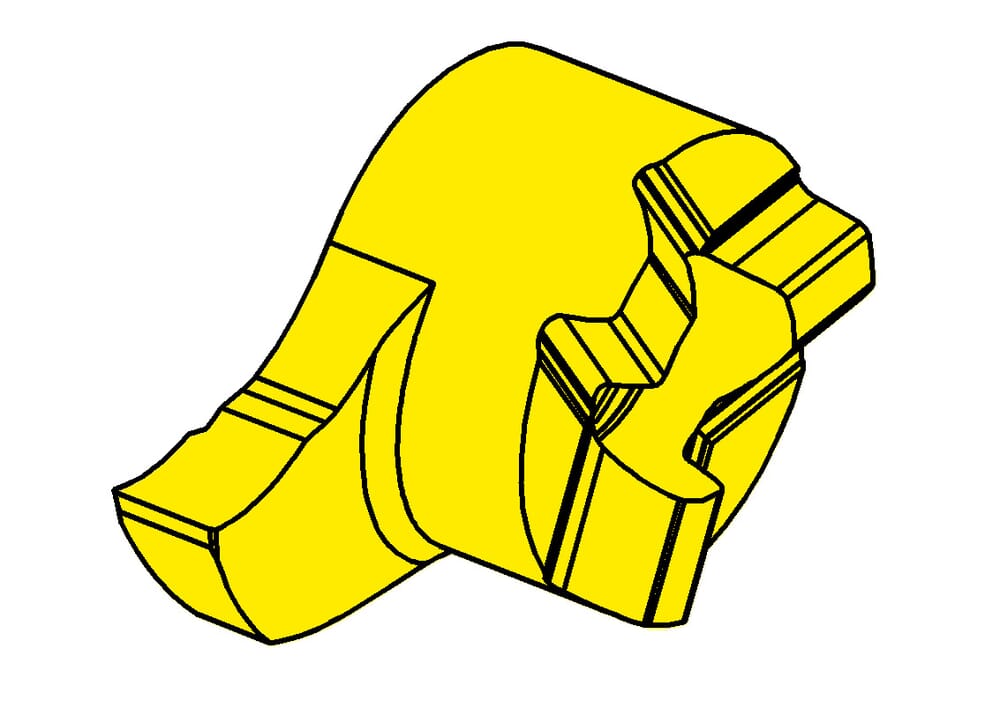

HORN Insert L10P.0100.2.00 TH35 for Turning

Head size (a)

9.5 mm

Maximum depth of groove (tmax)

3 mm

eclass-shortcut

21-18-20-11

ISO_SSC

HORN10P060$84L$$$$$

Katalog_SSC

10P060L

Width of groove (w)

1 mm

Setting range radial (f)

6.5 mm

Tooth diameter, head diameter (d)

6 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Smallest bore diameter (Dmin)

10 mm
