L10P.0150.1.00 EG55

Insert

Part number L10P0150100EG55

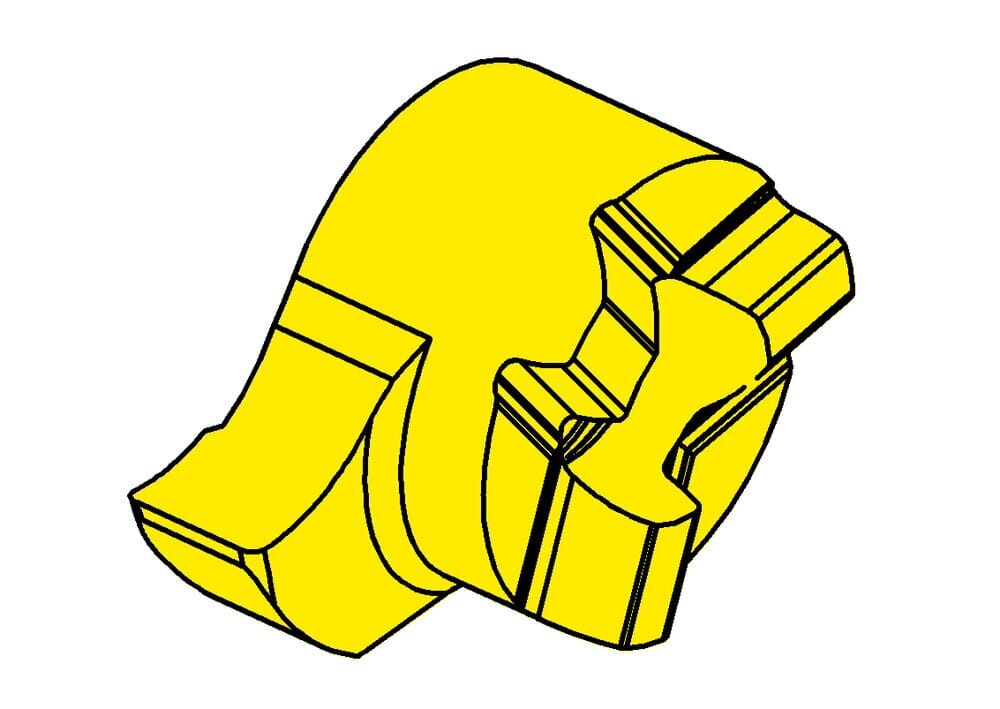

HORN Insert L10P.0150.1.00 EG55 for Turning

Setting range radial (f)

5.5 mm

eshop-note-us

Inserts ending in '.00' have a .002" x 45? (0.05mm) corner chamfer.

Smallest bore diameter (Dmin)

9 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Tooth diameter, head diameter (d)

6 mm

Head size (a)

8.5 mm

Width of groove (w)

1.5 mm

Katalog_SSC

10P060L

ISO_SSC

HORN10P060$84L$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2 mm
