L111.0070.00 TH35
insert
Part number L111007000TH35

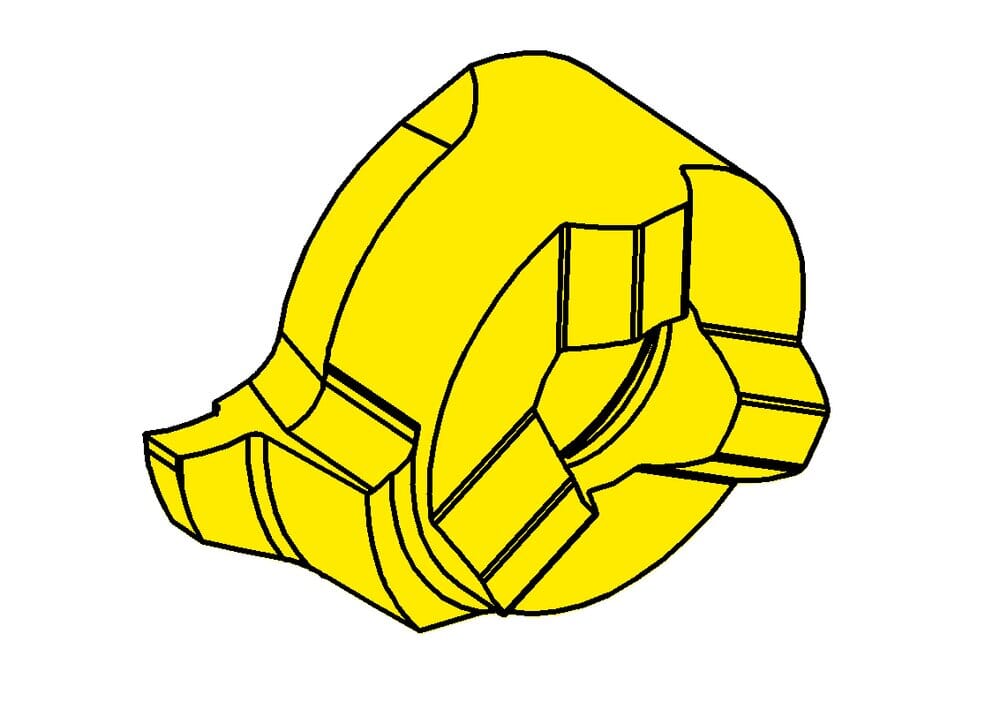

HORN insert L111.0070.00 TH35 for Turning
Please note:Technical instructions
ISO_SSC
HORN111080$84L$$$$$
Smallest bore diameter (Dmin)
11
mm
cutting-insert-height-met
4.15
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.95
mm
Cutting insert thickness, setting length complete (s)
4.15
mm
Nominal range (Nw)
0.7
mm
Maximum milling depth/ depth of groove (tmax)
1.2
mm
Width of groove (w)
0.74
mm
Katalog_SSC
111080L
DIN_SSC
HORN-11108084L
distance-dimension-cutting-edge-met
3.95
eclass-shortcut
21-18-20-11
depth-of-groove-max-met
1.2
mm
head-size-met
10.7
mm
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
13.4
mm
Downloads | |
---|---|
L111007000_20230112_201900198.STP | Download |
L111007000.DXF | Download |
Download all files |
