L111.0090.00 TH35

insert

Part number L111009000TH35

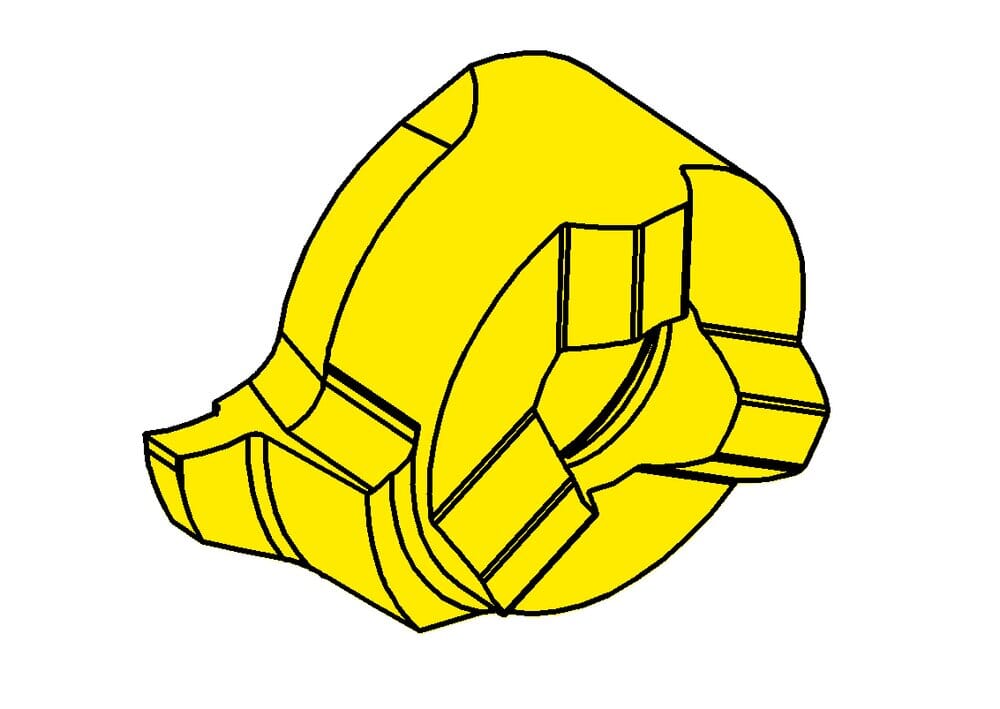

HORN insert L111.0090.00 TH35 for Turning

ISO_SSC

HORN111080$84L$$$$$

eshop-note-us

Widths for circlip grooves DIN 471/472. Not face cutting, limited depth of cut.

Smallest bore diameter (Dmin)

11 mm

cutting-insert-height-met

4.15 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

3.95 mm

Cutting insert thickness, setting length complete (s)

4.15 mm

Nominal range (Nw)

0.9 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Width of groove (w)

0.94 mm

Katalog_SSC

111080L

distance-dimension-cutting-edge-met

3.95 mm

eclass-shortcut

21-18-20-11

depth-of-groove-max-met

1.5 mm

head-size-met

10.7 mm

Number of teeth (Z)

1 St.

Cutting diameter (Ds)

13.4 mm
