L111.0100.1.00 EG55

Insert

Part number L1110100100EG55

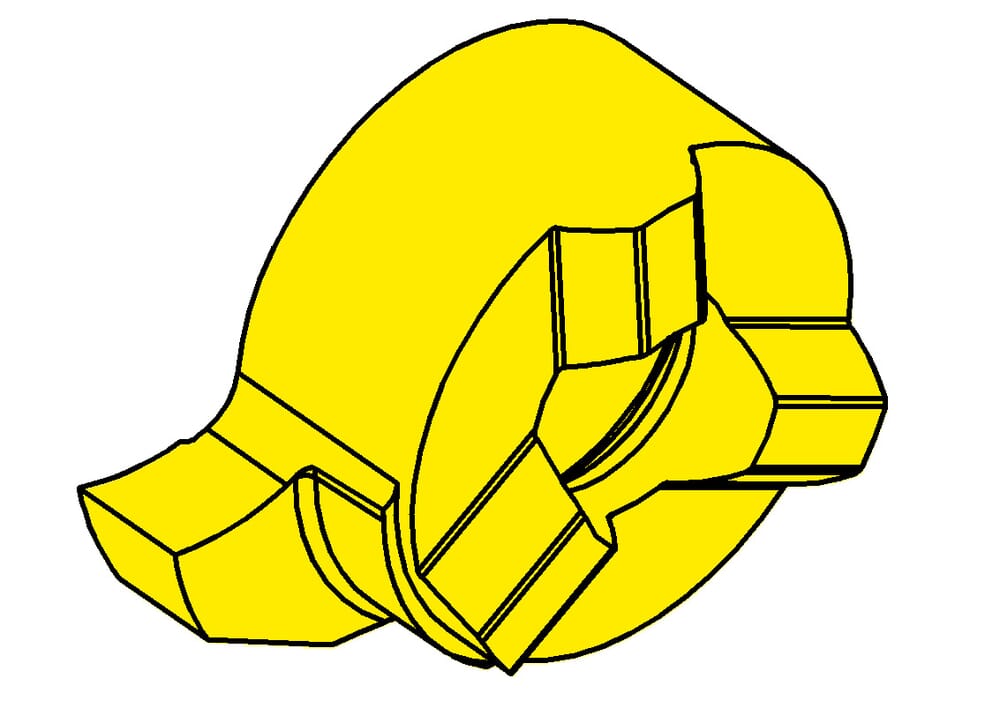

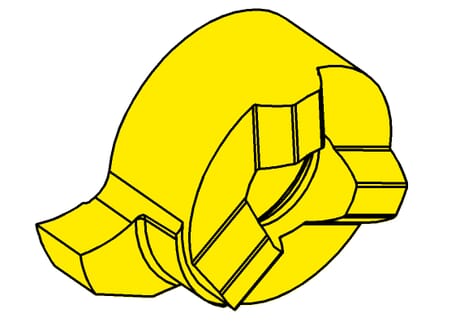

HORN Insert L111.0100.1.00 EG55 for Turning

Maximum milling depth/ depth of groove (tmax)

2.3 mm

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

3.95 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

cutting-insert-thickness-met

3.95 mm

Cutting diameter (Ds)

13.4 mm

Width of groove (w)

1 mm

Katalog_SSC

111080L

ISO_SSC

HORN111080$84L$$$$$

eclass-shortcut

21-18-20-11

depth-of-groove-max-met

2.3 mm

head-size-met

10.7 mm

Number of teeth (Z)

1 St.
