L111.0110.00 TH35
insert
Part number L111011000TH35

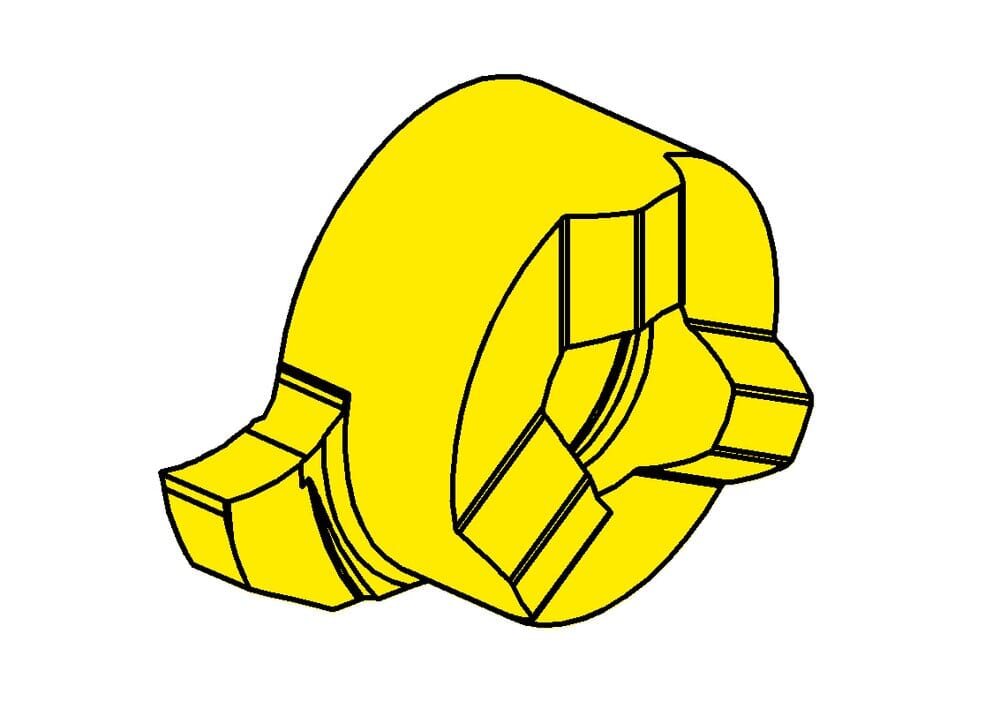

HORN insert L111.0110.00 TH35 for Turning
Please note:Technical instructions
DIN_SSC
HORN-11108084L
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Nominal range (Nw)
1.1
mm
Maximum milling depth/ depth of groove (tmax)
2.3
mm
Width of groove (w)
1.19
mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
1
St.
Cutting diameter (Ds)
13.4
mm
Downloads | |
---|---|
L111011000_20230112_195138821.STP | Download |
L111011000_20210627_163516735.DXF | Download |
Download all files |
