L111.0150.00 TN35

Inserts

Part number L111015000TN35

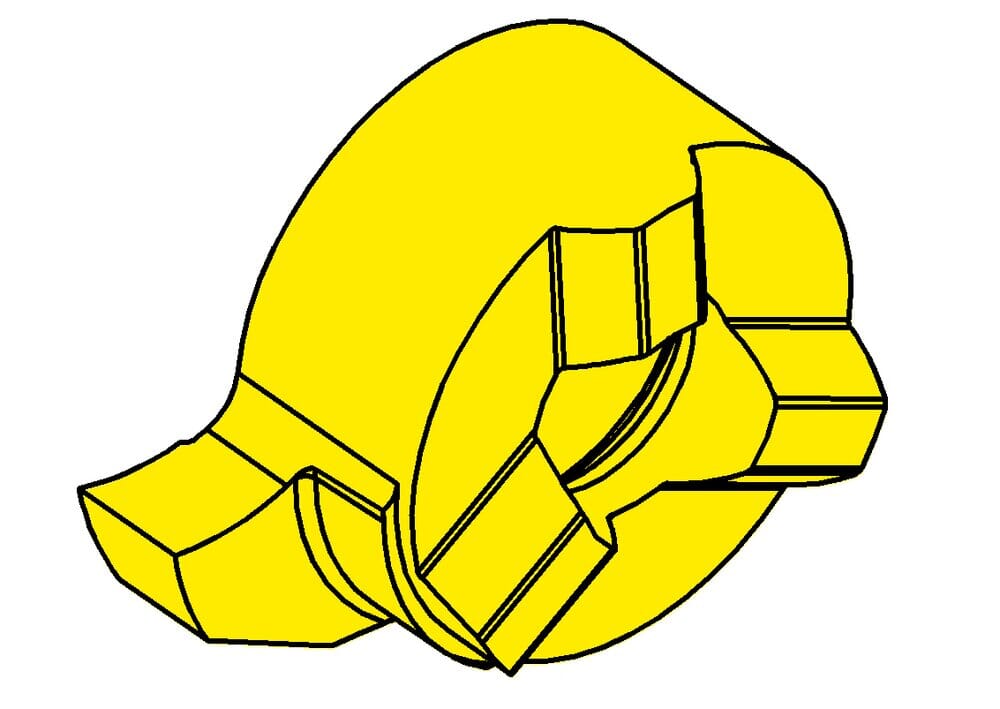

HORN Inserts L111.0150.00 TN35 for Turning

ISO_SSC

HORN111080$84L$$$$$

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

3.95 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Maximum milling depth/ depth of groove (tmax)

2.3 mm

Width of groove (w)

1.5 mm

Katalog_SSC

111080L

eclass-shortcut

21-18-20-11

Number of teeth (Z)

1 St.

Cutting diameter (Ds)

13.4 mm
