L111.0510.01 TN35
Inserts
Part number L111051001TN35
HORN Inserts L111.0510.01 TN35 for Gewinden
Please note:Technical instructions

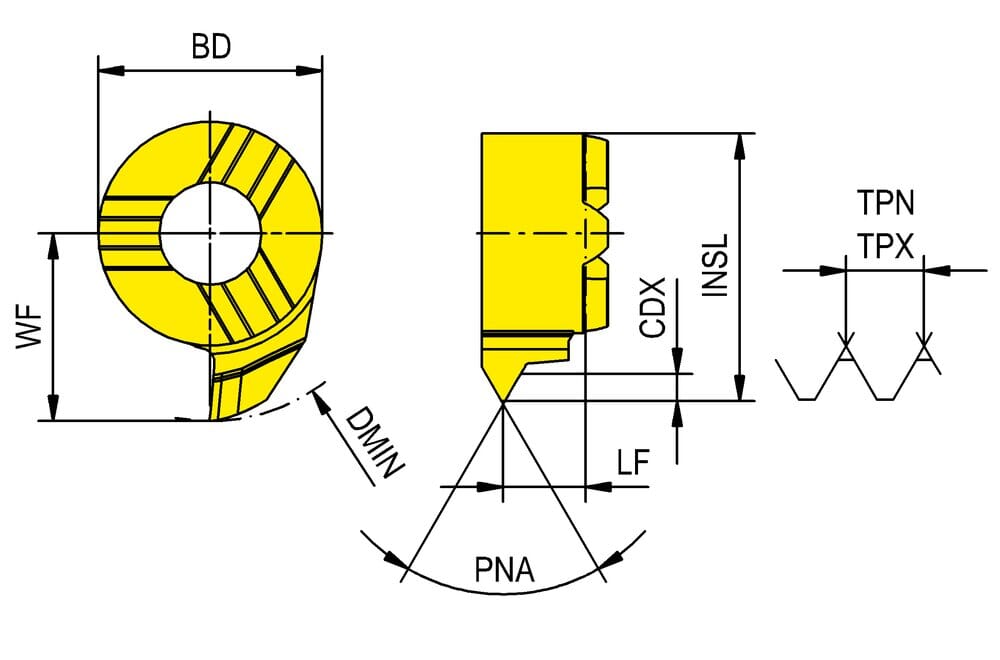

Cutting edge count (CEDC)
1
Profile included angle (PNA)
60 °
Funktional width (WF)
6.7 mm
Thred pitch maximum (TPX)
1.25 mm
Thread pitch minimum (TPN)
1 mm
Functional length (LF)
3.3 mm
Insert length (INSL)
10.7 mm
Minimum bore diameter (DMIN)
11 mm
Cutting depth maximum (CDX)
0.7 mm
Body diameter (BD)
8 mm
| Downloads | |
|---|---|
| L111_0510_01_TN35-DXF.DXF | Download |
| L111_0510_01_TN35-STP.STP | Download |
| L111_0510_01_TN35-ISO.XML | Download |
| L111_0510_01_TN35-DIN.XML | Download |
| Download all files | |
