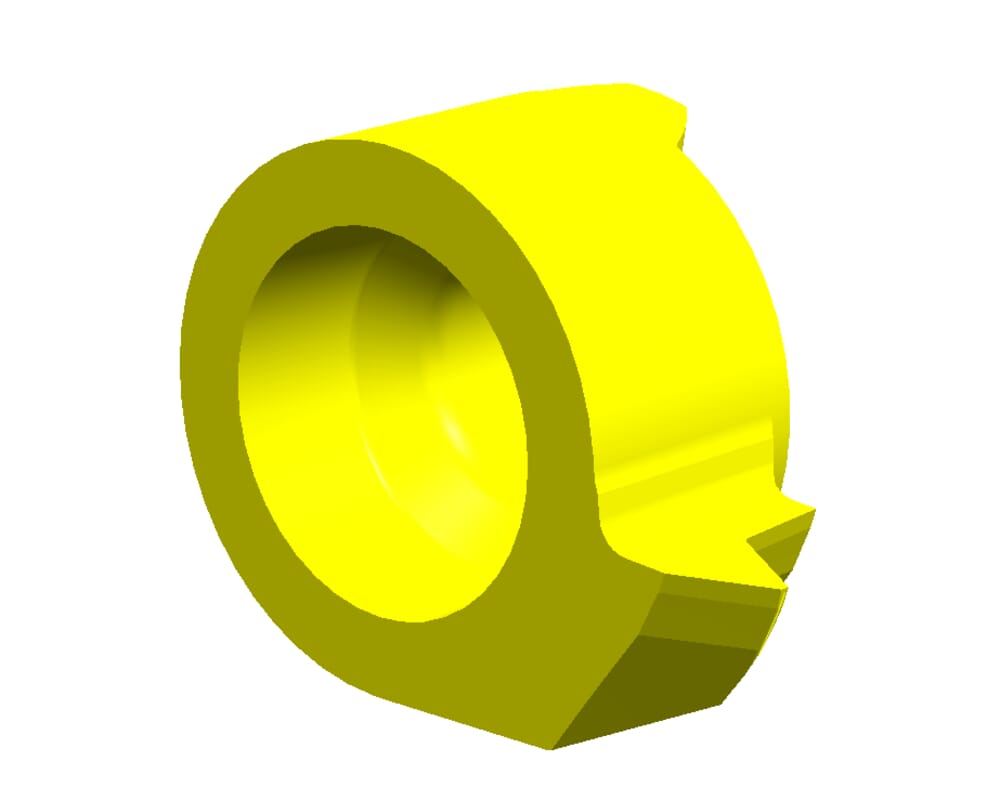

L111.0815.01 EG55

Insert

Part number L111081501EG55

HORN Insert L111.0815.01 EG55 for Gewinden

DIN_SSC

HORN-11108084L

Maximum pitch (Pmax)

1.75 mm

Pitch (P)

1.5 mm

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

4.15 mm

Setting length (E)

3.3 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Katalog_SSC

111080L

ISO_SSC

HORN111080$84L$$$$$

eclass-shortcut

21-18-20-11

Cutting diameter (Ds)

13.4 mm
