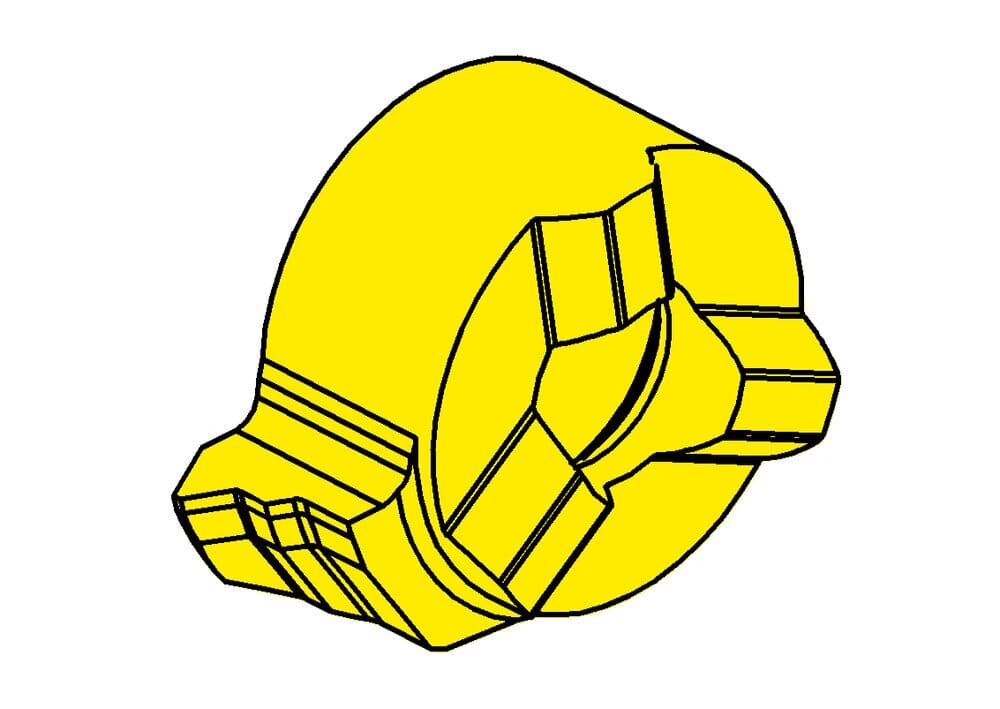

L111.0815.02 EG55
Insert
Part number L111081502EG55
HORN Insert L111.0815.02 EG55 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11108084L
Pitch (P)
1.5
mm
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
4.15
mm
Setting length (E)
3.3
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L111081502_20210630_180512525.STP | Download |
L111081502_20210627_164619876.DXF | Download |
Download all files |
