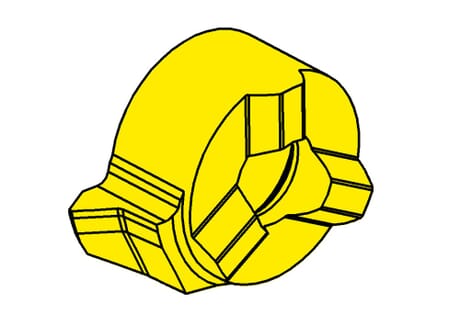

L111.1020.01 TH35

insert

Part number L111102001TH35

HORN insert L111.1020.01 TH35 for Gewinden

DIN_SSC

HORN-11108084L

Maximum pitch (Pmax)

2 mm

Pitch (P)

2 mm

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

4.15 mm

Setting length (E)

3 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Katalog_SSC

111080L

ISO_SSC

HORN111080$84L$$$$$

eclass-shortcut

21-18-20-11

Cutting diameter (Ds)

13.4 mm
