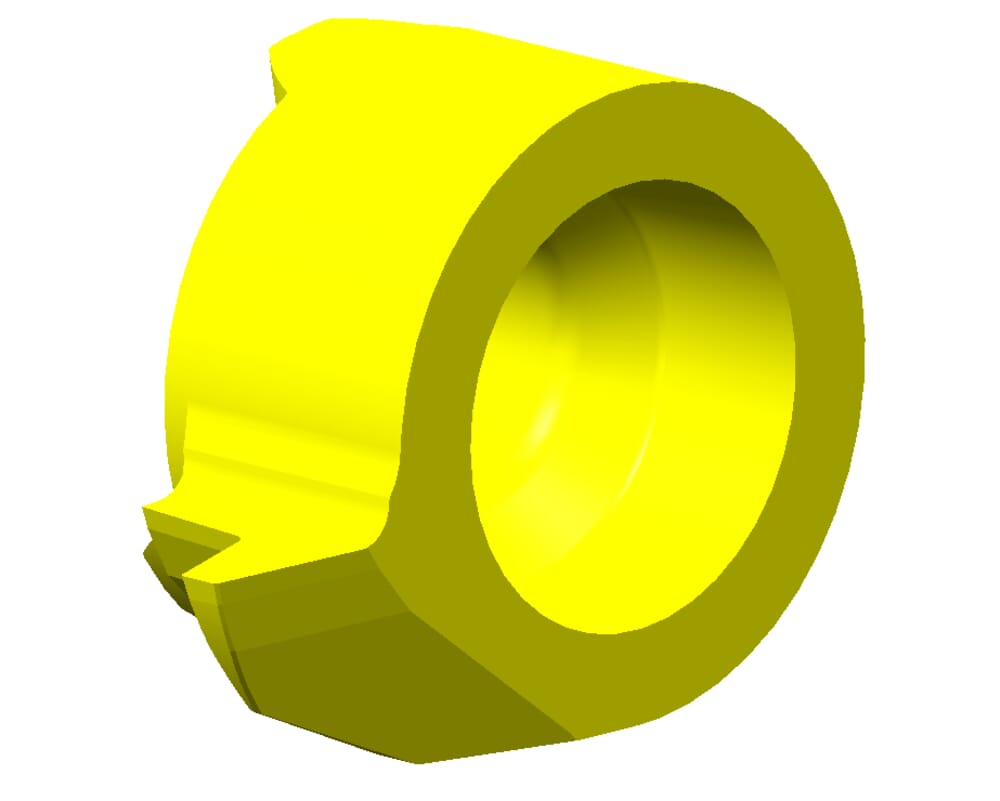

L111.1220.01 EG55
Insert
Part number L111122001EG55
HORN Insert L111.1220.01 EG55 for Gewinden
Please note:Technical instructions
ISO_SSC
HORN111080$84L$$$$$

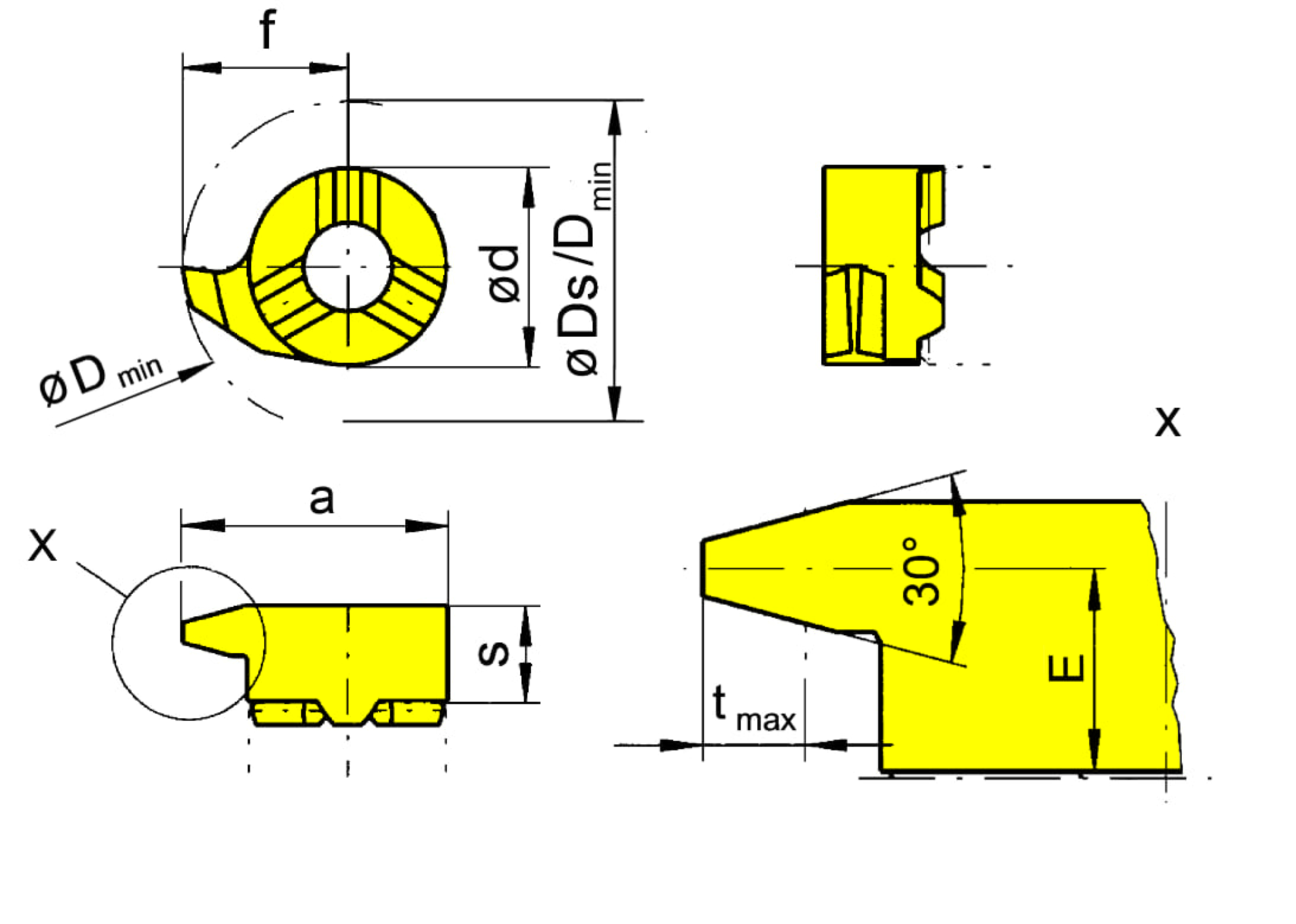

Pitch (P)
2
mm
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
4.15
mm
Setting length (E)
3.3
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Katalog_SSC
111080L
DIN_SSC
HORN-11108084L
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Cutting diameter (Ds)
13.4
mm
Downloads | |
---|---|
L111122001_20240117_053928592.STP | Download |
L111122001_20240205_182034011.DXF | Download |
Download all files |
