L111.1325.02 EG55

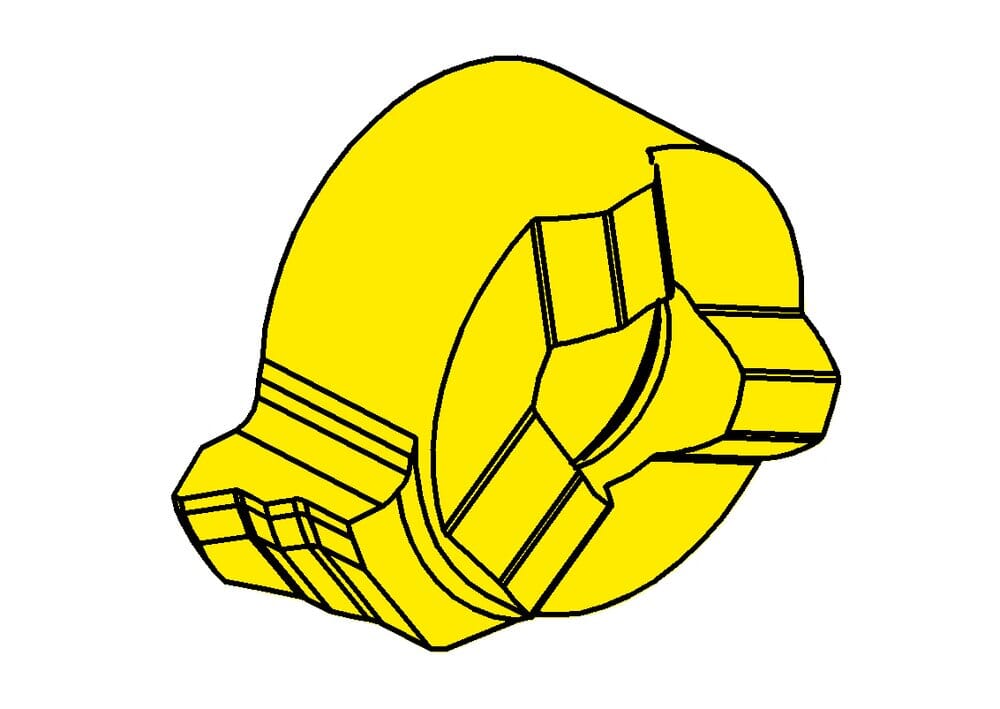

Insert

Part number L111132502EG55

HORN Insert L111.1325.02 EG55 for Gewinden

DIN_SSC

HORN-11108084L

Pitch (P)

2.5 mm

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

4.15 mm

Setting length (E)

2.8 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Setting range radial (f)

6.7 mm

Katalog_SSC

111080L

ISO_SSC

HORN111080$84L$$$$$

eclass-shortcut

21-18-20-11

number-of-teeth

1 St.
