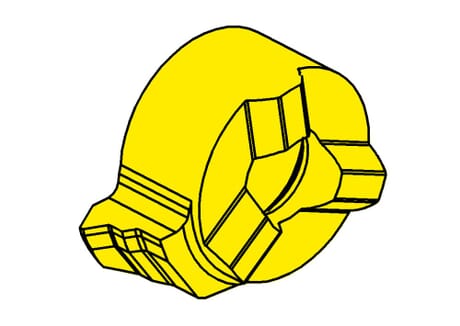

L111.1630.02 TN35
Inserts
Part number L111163002TN35
HORN Inserts L111.1630.02 TN35 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11108084L
Pitch (P)
3
mm
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
4.15
mm
Setting length (E)
2.8
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
| Downloads | |
|---|---|
| L111163002_20230112_195241627.STP | Download |
| L111163002_20210706_224631531.DXF | Download |
| Download all files | |
