L111.1867.02 TH35
Insert
Part number L111186702TH35

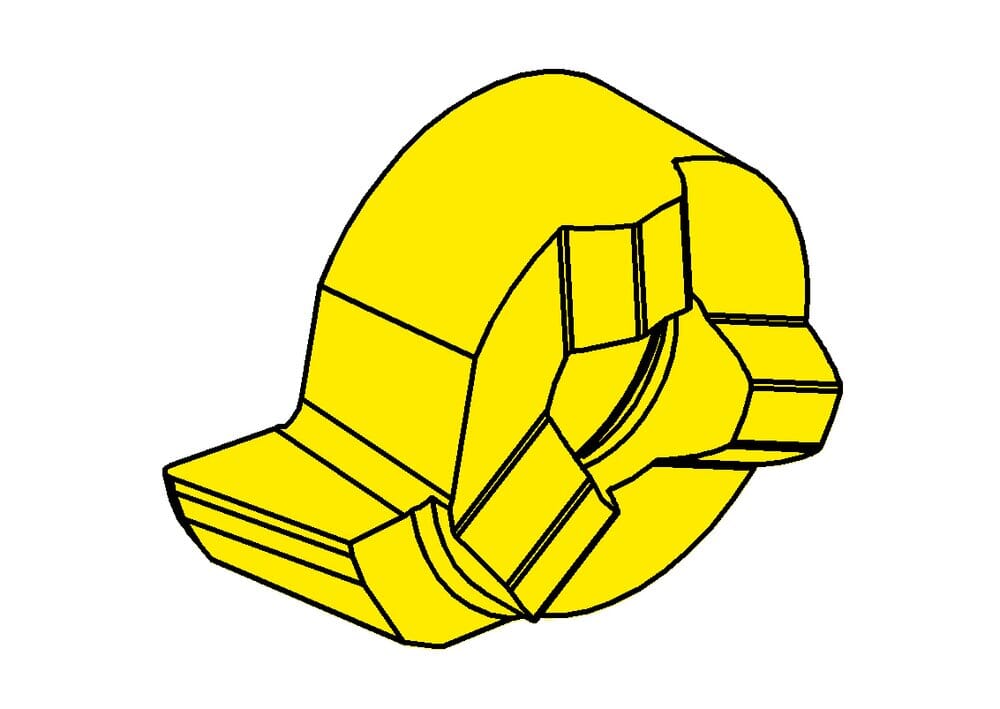

HORN Insert L111.1867.02 TH35 for Turning
Please note:Technical instructions
Top radius (r)
0.2 mm
Head size (a)
10.7 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN111080$84L$$$$$
Katalog_SSC
111080L
Setting range radial (f)
6.7 mm
Tooth diameter, head diameter (d)
8 mm
Cutting insert height, Cutting insert thickness (s)
3.95 mm
Smallest bore diameter (Dmin)
11 mm
| Downloads | |
|---|---|
| L111_1867_02_TH35-DXF.DXF | Download |
| L111_1867_02_TH35-STP.STP | Download |
| L111_1867_02_TH35-ISO.XML | Download |
| L111_1867_02_TH35-DIN.XML | Download |
| Download all files | |
