L111.1867.02 TN35
Inserts
Part number L111186702TN35

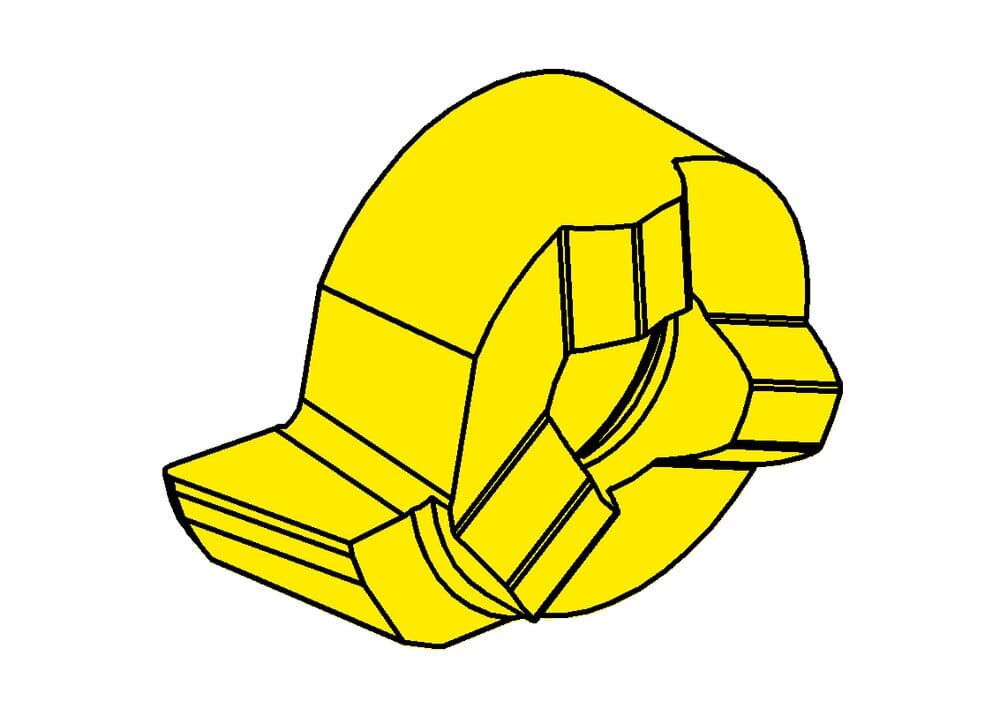

HORN Inserts L111.1867.02 TN35 for Turning
Please note:Technical instructions
Top radius (r)
0.2
mm
Head size (a)
10.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN111080$84L$$$$$
DIN_SSC
HORN-11108084L
Katalog_SSC
111080L
Setting range radial (f)
6.7
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.95
mm
Smallest bore diameter (Dmin)
11
mm
| Downloads | |
|---|---|
| L111186702_20230112_195259264.STP | Download |
| L111186702_20210627_165111878.DXF | Download |
| Download all files | |
