L111.2240.01 TN35
Insert
Part number L111224001TN35

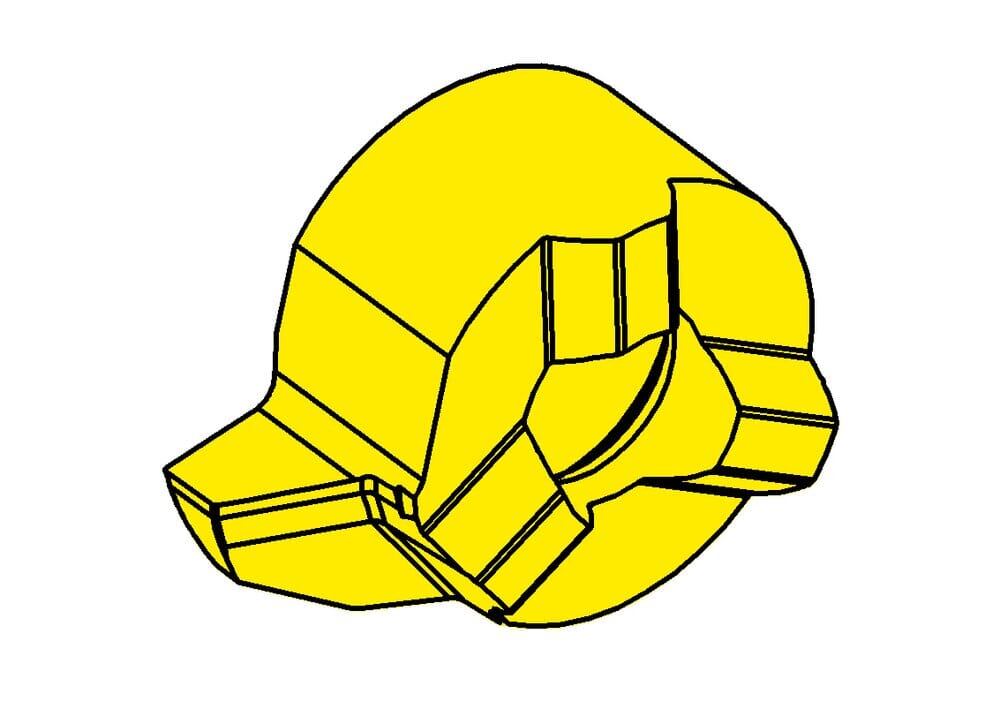

HORN Insert L111.2240.01 TN35 for Gewinden
Please note:Technical instructions
ISO_SSC
HORN111080$84L$$$$$
Pitch (P)
4
mm
Smallest bore diameter (Dmin)
11
mm
Cutting insert height, Cutting insert thickness (s)
4.15
mm
Setting length (E)
2.5
mm
Tooth diameter, head diameter (d)
8
mm
Cutting insert width (a)
10.7
mm
Setting range radial (f)
6.7
mm
Katalog_SSC
111080L
DIN_SSC
HORN-11108084L
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Cutting diameter (Ds)
13.4
mm
Downloads | |
---|---|
L111_2240_01_20171121_195546195.STP | Download |
L111_2240_01.DXF | Download |
Download all files |
