L111.3067.02 TH35

Inserts

Part number L111306702TH35

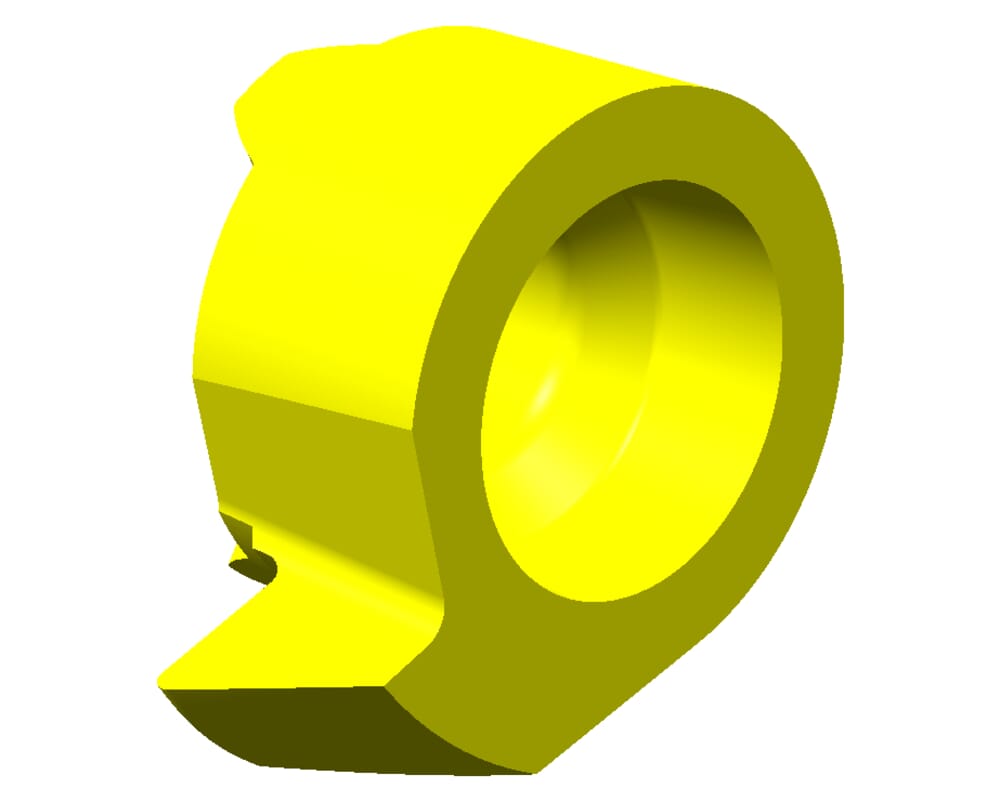

HORN Inserts L111.3067.02 TH35 for Turning

Katalog_SSC

111080L

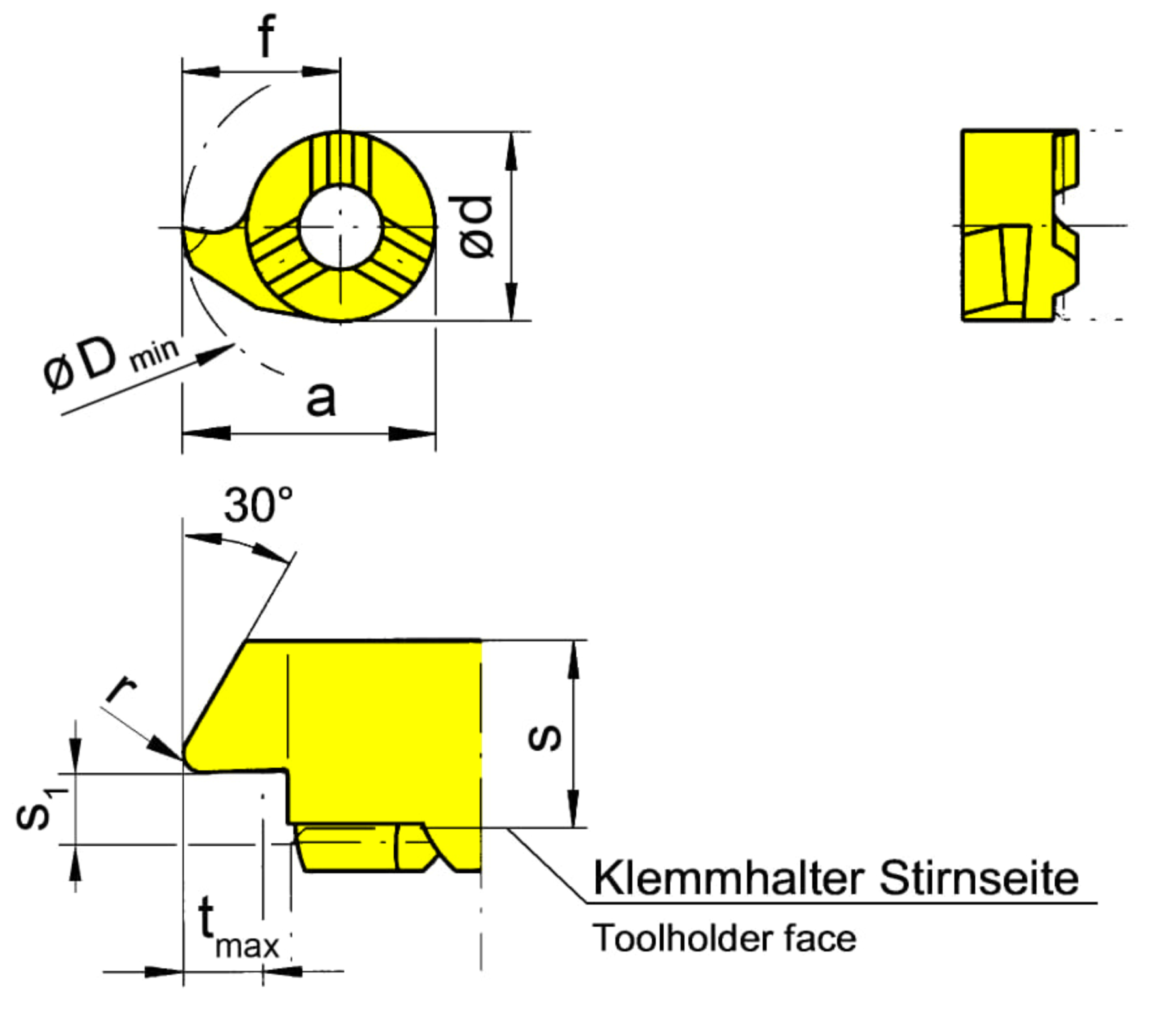

Smallest bore diameter (Dmin)

11 mm

Cutting insert height, Cutting insert thickness (s)

4.15 mm

Tooth diameter, head diameter (d)

8 mm

Setting range radial (f)

6.7 mm

Top radius (r)

0.2 mm

ISO_SSC

HORN111080$84L$$$$$

Cutting insert width (s1)

1.4 mm

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2.3 mm

Head size (a)

10.7 mm
