L114.0020.40 EG55
Insert
Part number L114002040EG55

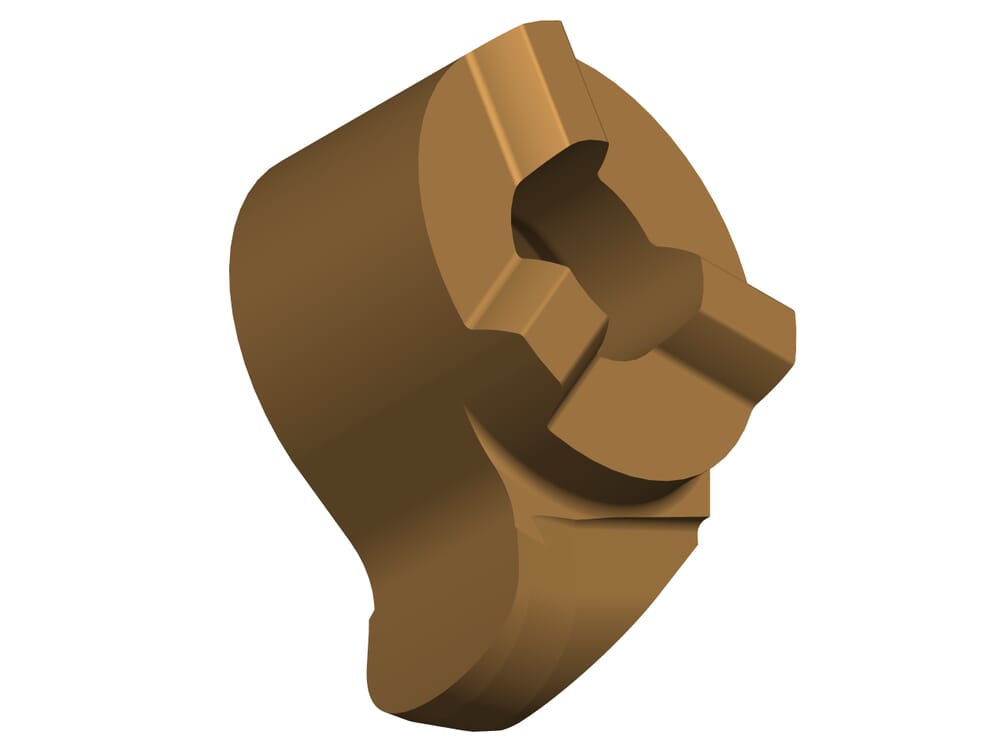

HORN Insert L114.0020.40 EG55 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
14
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
9
mm
Width of groove (w)
4
mm
Katalog_SSC
114090L
DIN_SSC
HORN-11409084L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
Full radius (r)
2
mm
Maximum depth of groove (tmax)
4
mm
Head size (a)
13.5
mm
Downloads | |
---|---|
L114002040_20230112_193110881.STP | Download |
L114002040_20210627_192205307.DXF | Download |
Download all files |
