L114.0510.01 TN35
Inserts
Part number L114051001TN35

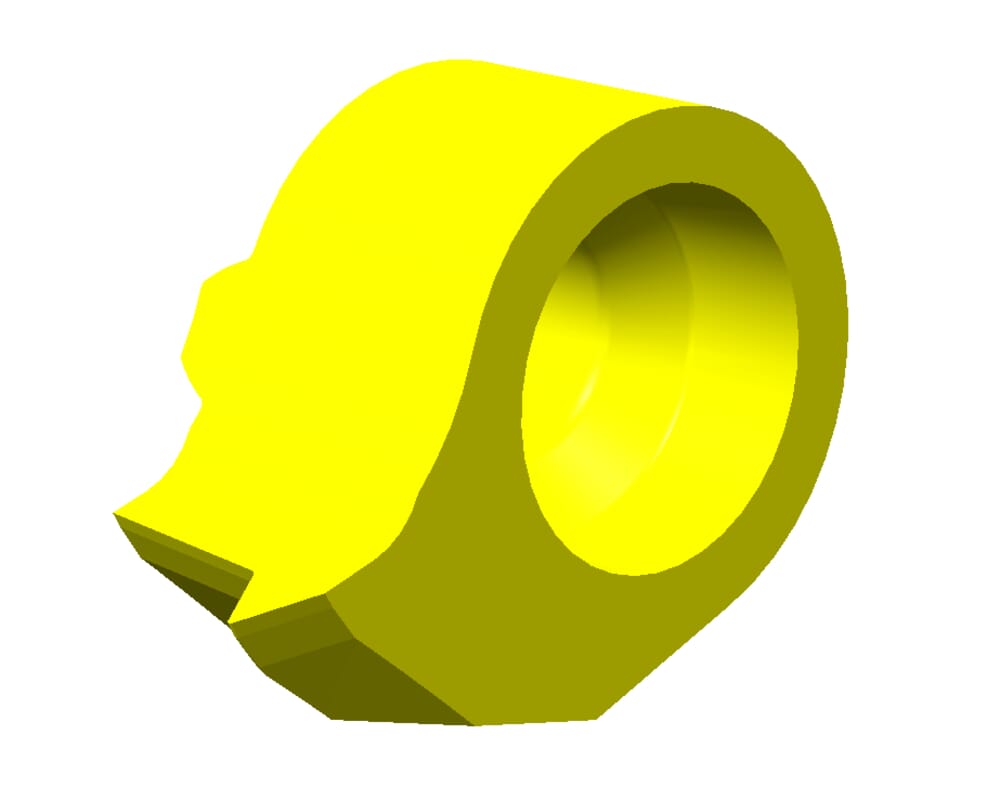

HORN Inserts L114.0510.01 TN35 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11409084L
Maximum pitch (Pmax)
1.25
mm
Pitch (P)
1
mm
Smallest bore diameter (Dmin)
14
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Setting length (E)
4.7
mm
Tooth diameter, head diameter (d)
9
mm
Cutting insert width (a)
13.5
mm
Setting range radial (f)
9
mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L114051001_20230116_223159693.STP | Download |
L114051001_20210706_233442843.DXF | Download |
Download all files |
