L114.1020.01 EG55
Insert
Part number L114102001EG55

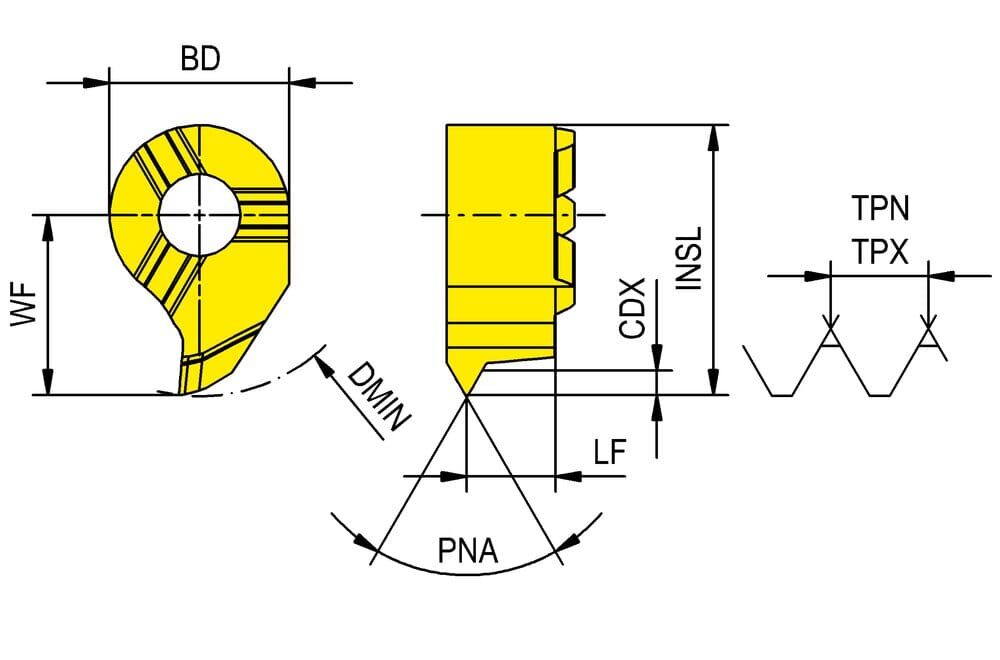

HORN Insert L114.1020.01 EG55 for Gewinden
Please note:Technical instructions
Cutting edge count (CEDC)
1
Profile included angle (PNA)
60 °
Funktional width (WF)
9 mm
Thred pitch maximum (TPX)
2 mm
Thread pitch minimum (TPN)
2 mm
Functional length (LF)
4.2 mm
Insert length (INSL)
13.5 mm
Minimum bore diameter (DMIN)
14 mm
Cutting depth maximum (CDX)
1.1 mm
Body diameter (BD)
9 mm
| Downloads | |
|---|---|
| L114_1020_01_EG55-DXF.DXF | Download |
| L114_1020_01_EG55-STP.STP | Download |
| L114_1020_01_EG55-ISO.XML | Download |
| L114_1020_01_EG55-DIN.XML | Download |
| Download all files | |
