L114.1215.00 TN35

Inserts

Part number L114121500TN35

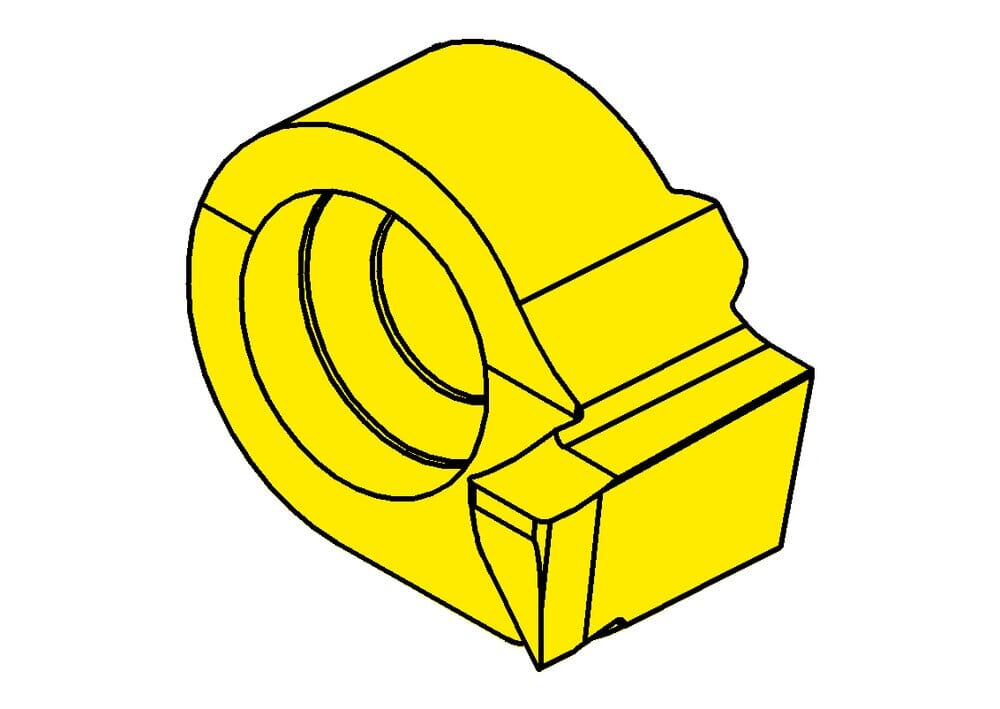

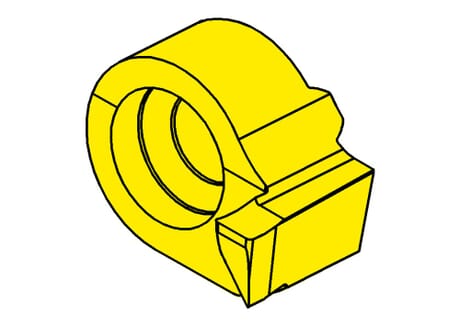

HORN Inserts L114.1215.00 TN35 for Turning

Head size (a)

12 mm

Maximum depth of groove (tmax a)

2.5 mm

eclass-shortcut

21-18-20-11

Smallest axial bore diameter (Da min)

12 mm

ISO_SSC

HORN114090$84L$$$$$

Katalog_SSC

114090L

Width of groove (w)

1.5 mm

Setting range radial (f)

7.5 mm

Corner radius (r)

0.2 mm

Cutting insert height, Cutting insert thickness (s)

8.3 mm
