L114.1325.01 TN35
Inserts
Part number L114132501TN35

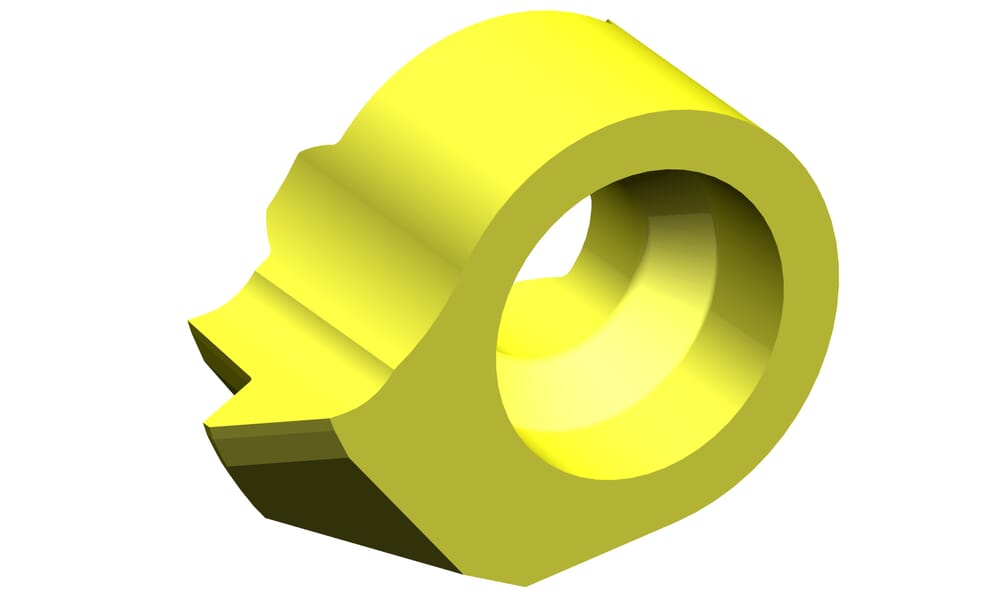

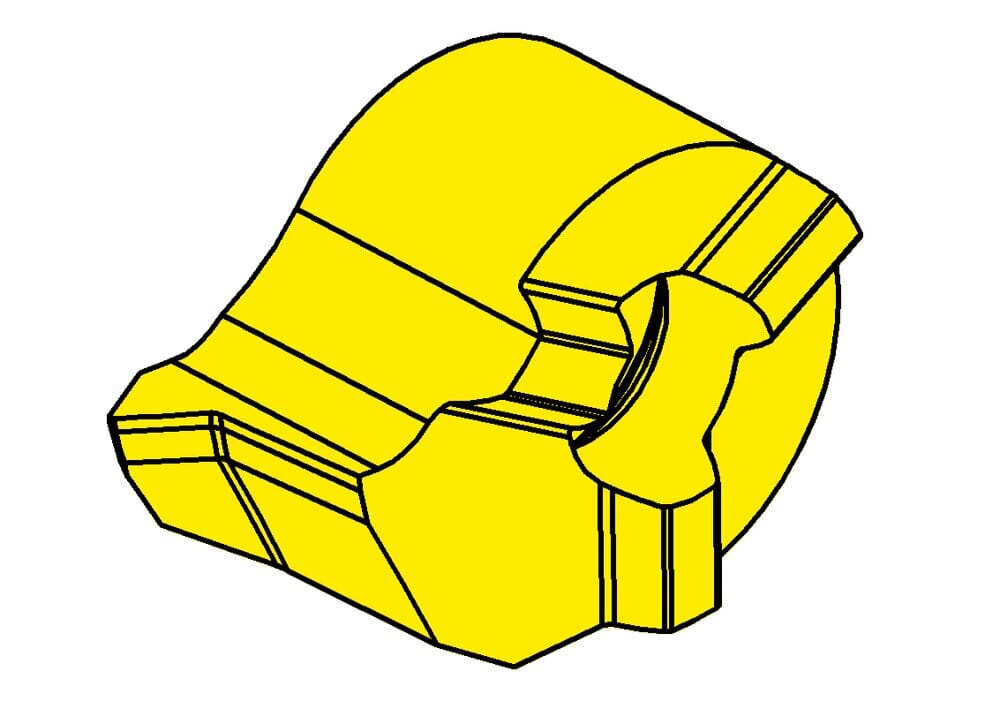

HORN Inserts L114.1325.01 TN35 for Gewinden
Please note:Technical instructions
DIN_SSC
HORN-11409084L
Maximum pitch (Pmax)
2.5
mm
Pitch (P)
2.5
mm
Smallest bore diameter (Dmin)
14
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Setting length (E)
4.2
mm
Tooth diameter, head diameter (d)
9
mm
Cutting insert width (a)
13.5
mm
Setting range radial (f)
9
mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L114132501_20230112_191320071.STP | Download |
L114132501_20211119_152948325.DXF | Download |
Download all files |
