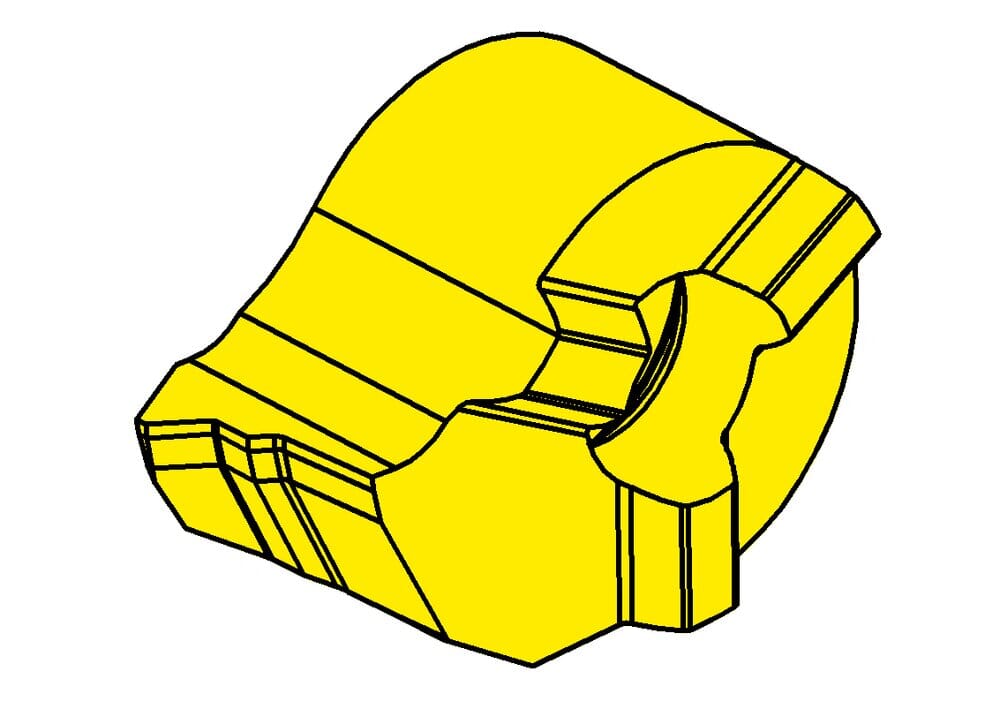

L114.1325.02 TN35

Inserts

Part number L114132502TN35

HORN Inserts L114.1325.02 TN35 for Gewinden

Tooth diameter, head diameter (d)

9 mm

Pitch (P)

2.5 mm

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.5 mm

Setting length (E)

4.2 mm

number-of-teeth

1 St.

Cutting insert width (a)

13.5 mm

Setting range radial (f)

9 mm

Katalog_SSC

114090L

ISO_SSC

HORN114090$84L$$$$$

eclass-shortcut

21-18-20-11
