back to products
R114142500_PICTO.TIF
R114142500_PICTO.TIF L114141000.TIF

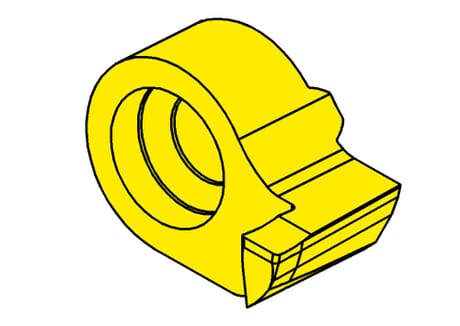

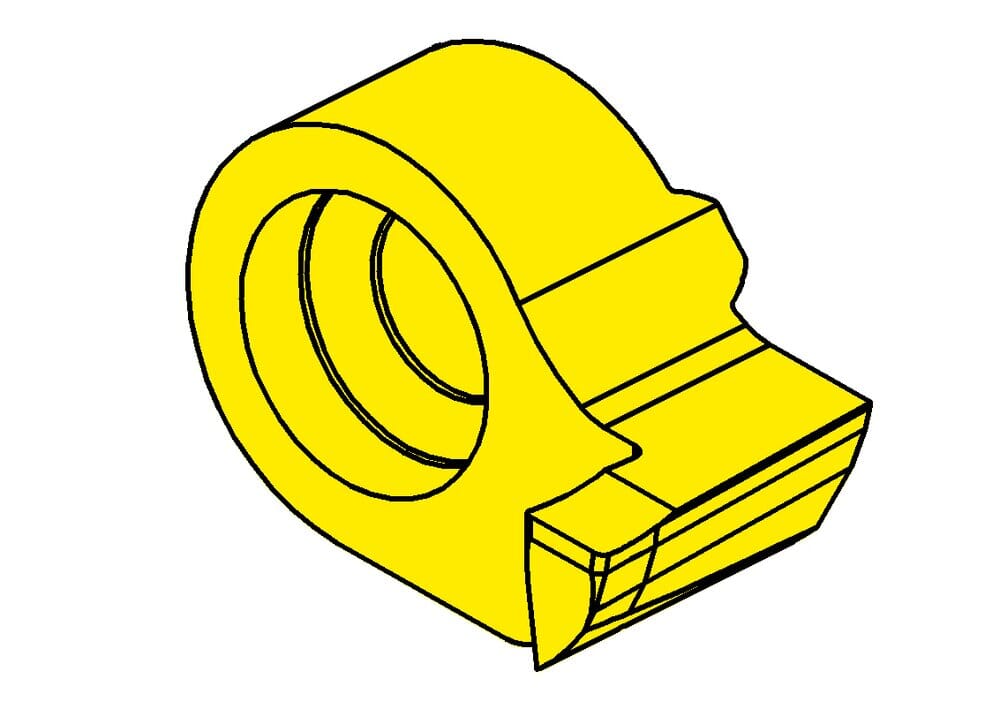

L114.1410.00 TN35

Inserts

AXIALSTECHEN.EPS

Part number L114141000TN35

HORN Inserts L114.1410.00 TN35 for Turning

Please note:Technical instructions

Head size (a)
13.5 mm
Maximum depth of groove (tmax a)
1.5 mm
eclass-shortcut
21-18-20-11
Smallest axial bore diameter (Da min)
14 mm
ISO_SSC
HORN114090$84L$$$$$
Katalog_SSC
114090L
Width of groove (w)
1 mm
Setting range radial (f)
9 mm
Cutting insert height, Cutting insert thickness (s)
8.3 mm
Downloads
L114141000_20210627_205237104.DXF Download
L114141000_20230112_191335738.STP Download
Download all files
