L114.FB15.01 EG35
Insert
Part number L114FB1501EG35

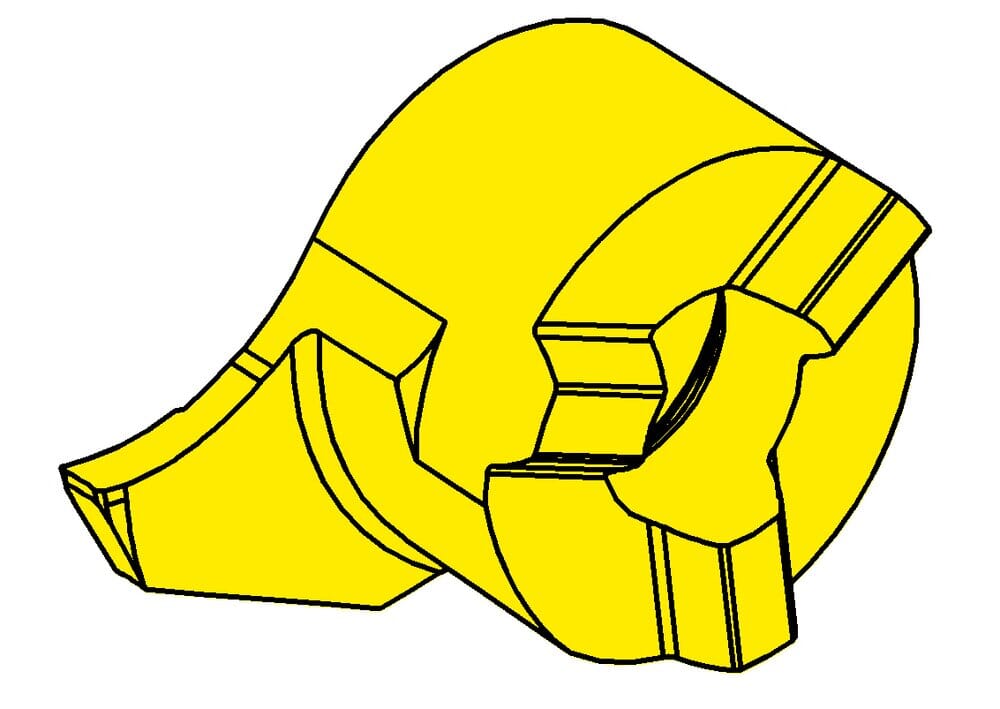

HORN Insert L114.FB15.01 EG35 for Turning
Please note:Technical instructions

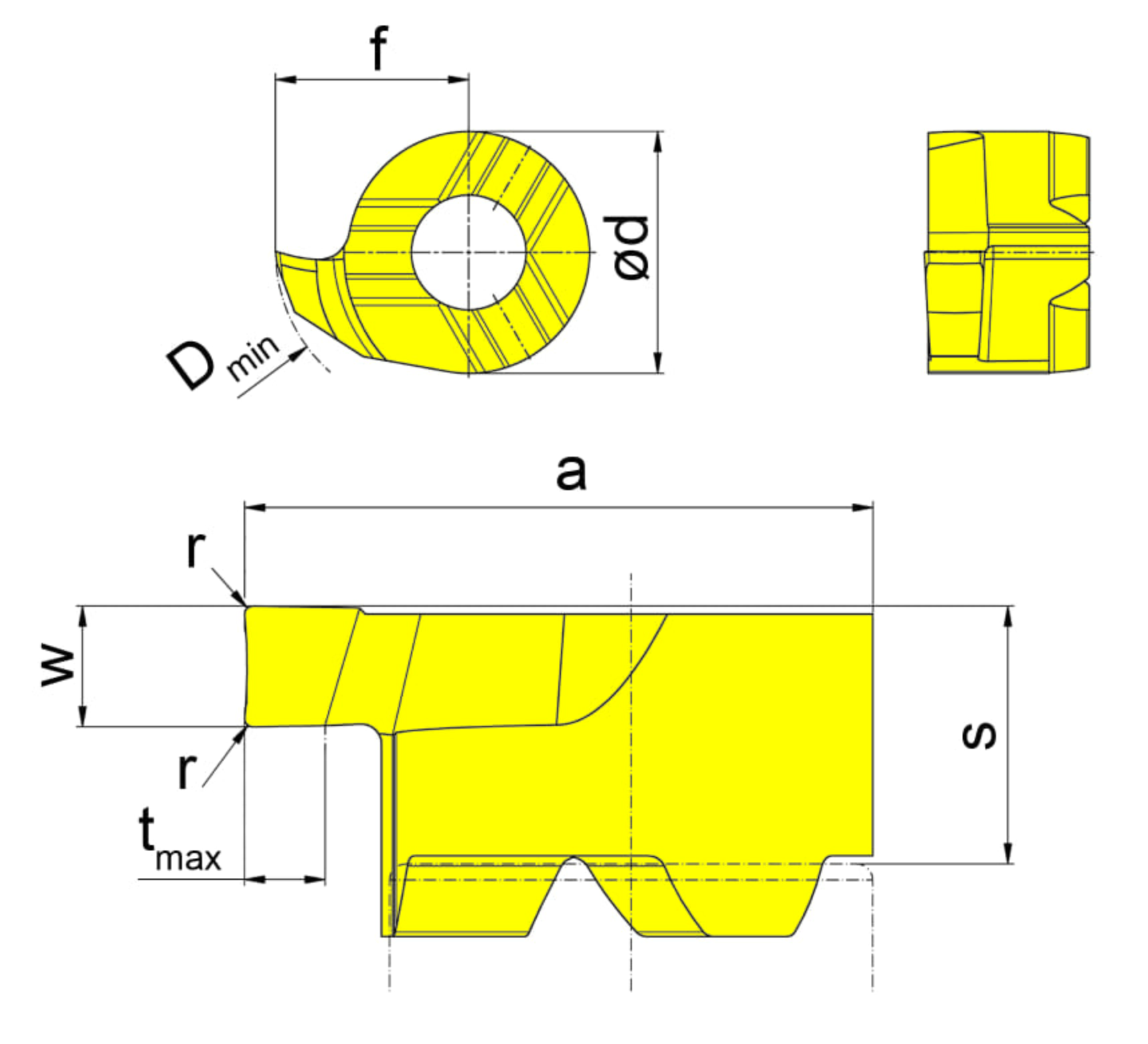

Tooth diameter, head diameter (d)
9 mm
eshop-note-us
These inserts feature an optimized geometry that produces a fine surface finish.
Smallest bore diameter (Dmin)
14 mm
Cutting insert height, Cutting insert thickness (s)
5.3 mm
Corner radius (r)
0.1 mm
Head size (a)
13.5 mm
Setting range radial (f)
9 mm
Width of groove (w)
1.5 mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4 mm
| Downloads | |
|---|---|
| L114_FB15_01_EG35-DIN.XML | Download |
| L114_FB15_01_EG35-DXF.DXF | Download |
| L114_FB15_01_EG35-STP.STP | Download |
| L114_FB15_01_EG35-ISO.XML | Download |
| Download all files | |
