L114.FB15.01 EG35
Insert
Part number L114FB1501EG35
HORN Insert L114.FB15.01 EG35 for Turning
Please note:Technical instructions

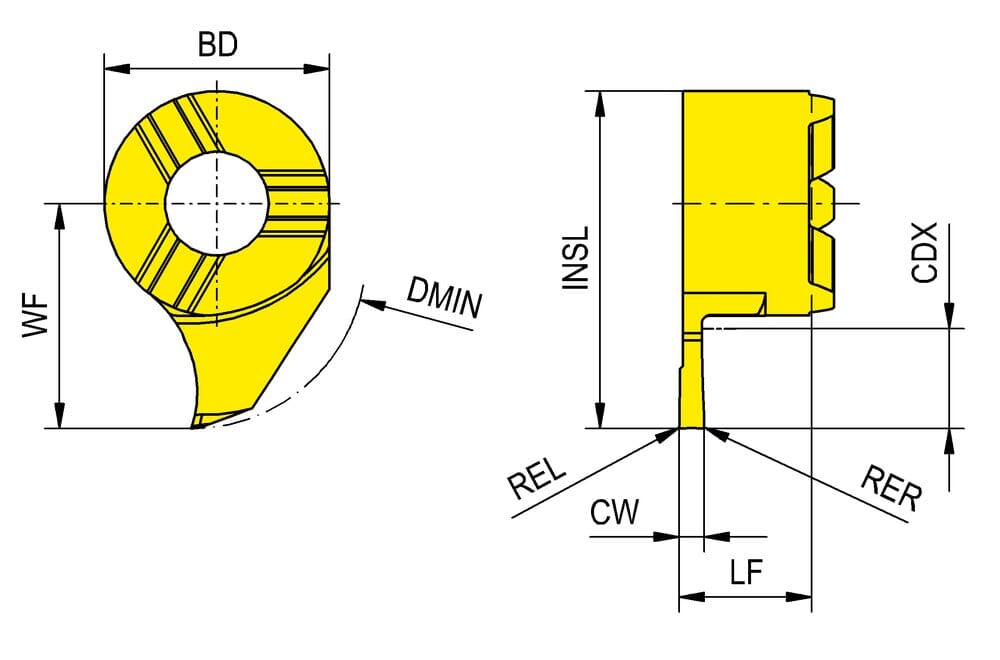

Cutting edge count (CEDC)
1
Funktional width (WF)
9 mm
corner radius left hand (REL)
0.1 mm
corner radius right hand (RER)
0.1 mm
Functional length (LF)
5.3 mm
Insert length (INSL)
13.5 mm
Minimum bore diameter (DMIN)
14 mm
Cutting width (CW)
1.5 mm
Cutting depth maximum (CDX)
4 mm
Body diameter (BD)
9 mm
| Downloads | |
|---|---|
| L114_FB15_01_EG35-DIN.XML | Download |
| L114_FB15_01_EG35-DXF.DXF | Download |
| L114_FB15_01_EG35-STP.STP | Download |
| L114_FB15_01_EG35-ISO.XML | Download |
| Download all files | |
