L116.0090.00 EG55
Insert
Part number L116009000EG55

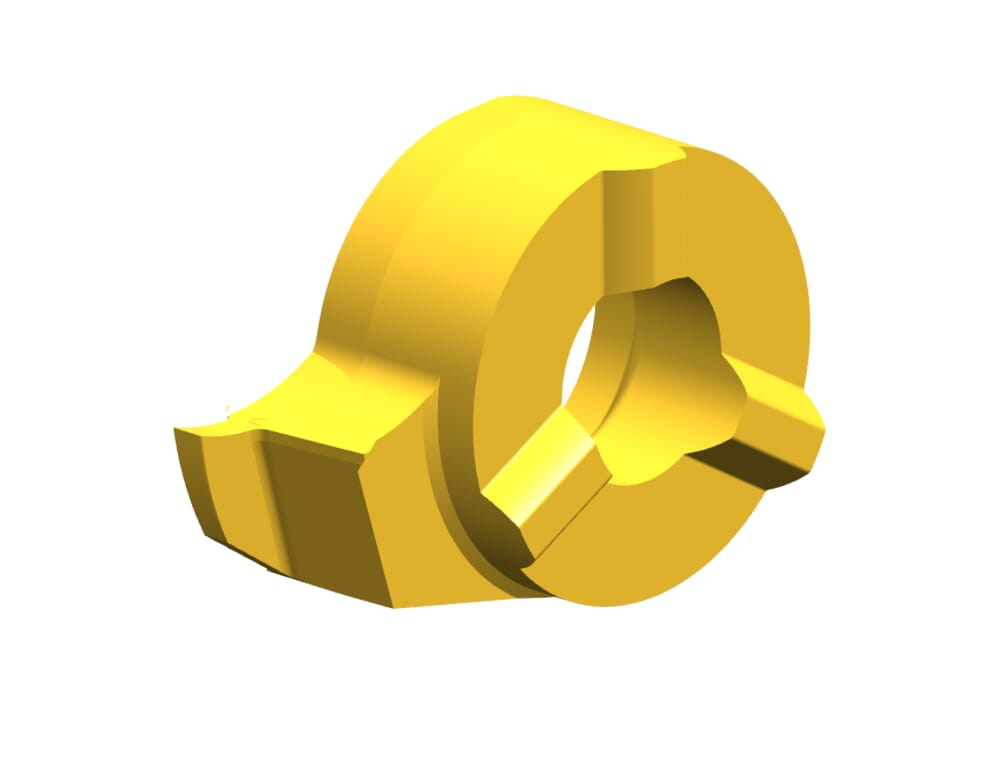

HORN Insert L116.0090.00 EG55 for Turning
Please note:Technical instructions
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Nominal range (Nw)
0.9
mm
Width of groove (w)
0.94
mm
Katalog_SSC
116110L
DIN_SSC
HORN-11611084L
ISO_SSC
HORN116110$84L$$$$$
Distance dimension cutting edge (s1)
5.3
mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1.5
mm
Head size (a)
15.7
mm
| Downloads | |
|---|---|
| L116009000_20230112_193927476.STP | Download |
| L116009000_20210706_231958355.DXF | Download |
| Download all files | |
