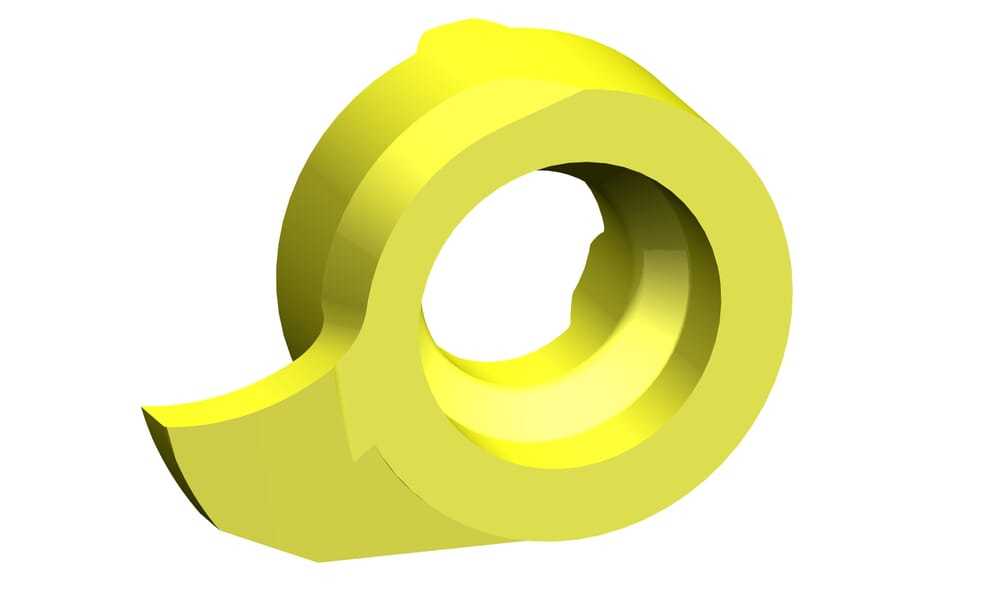

L116.0160.00 MG12

Inserts

Part number L116016000MG12

HORN Inserts L116.0160.00 MG12 for Milling and Turning

ISO_SSC

HORN116110$84L$$$$$

Number of teeth (Z)

1 St.

Smallest bore diameter (Dmin)

16 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

11 mm

Setting range radial (f)

10.2 mm

Nominal range (Nw)

1.6 mm

Width of groove (w)

1.69 mm

Katalog_SSC

116110L

DIN_SSC

HORN-11611084L

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4.3 mm

Head size (a)

15.7 mm

Cutting diameter (Ds)

20.4 mm
