L116.0160.00 TH35

Insert

Part number L116016000TH35

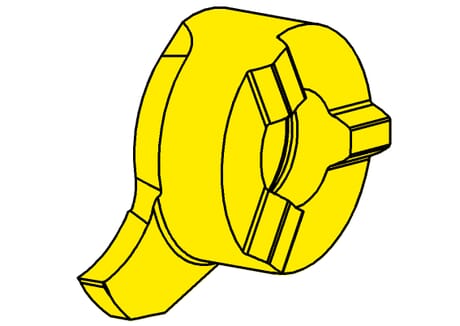

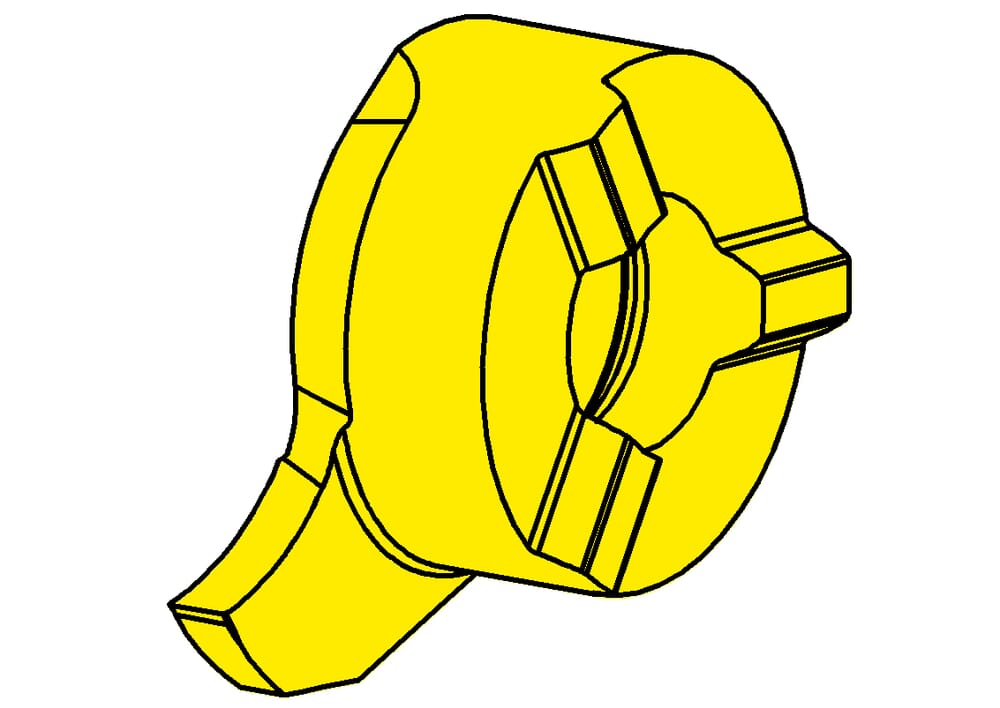

HORN Insert L116.0160.00 TH35 for Milling and Turning

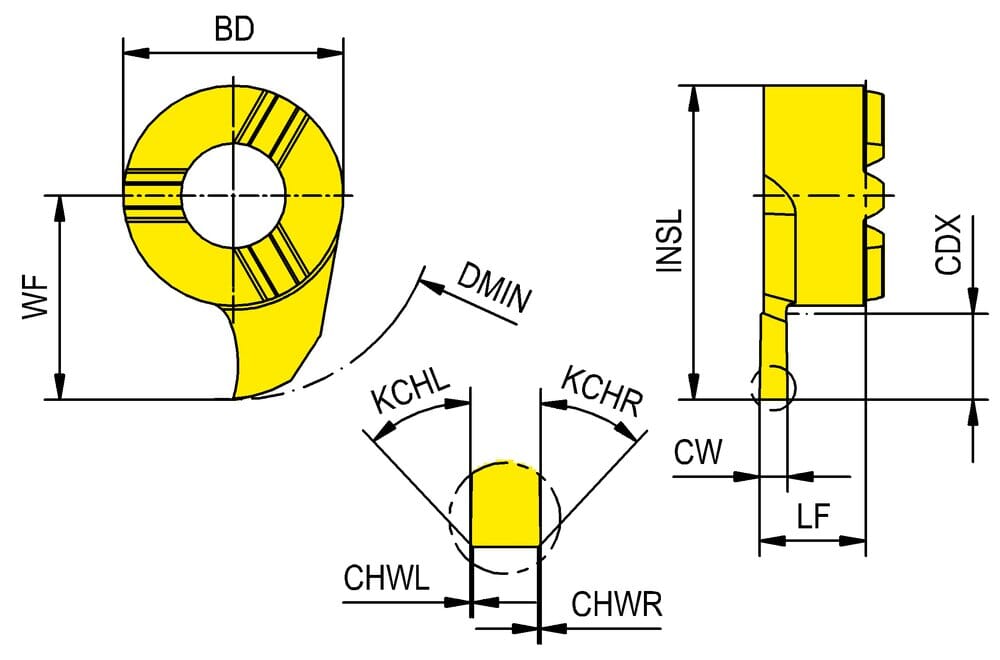

Corner chamfer width right hand (CHWR)

0.05 mm

Body diameter (BD)

11 mm

Cutting depth maximum (CDX)

4.3 mm

Cutting width (CW)

1.705 mm

Minimum bore diameter (DMIN)

16 mm

Insert length (INSL)

15.7 mm

Functional length (LF)

5.3 mm

Funktional width (WF)

10.2 mm

Corner chamfer width left hand (CHWL)

0.05 mm

Corner chamfer angle left hand (KCHL)

45 °

Corner chamfer angle right hand (KCHR)

45 °

Cutting edge count (CEDC)

Wide retaining ring (RTRG)

1.6 mm
