L116.0200.00 EG55
Insert
Part number L116020000EG55

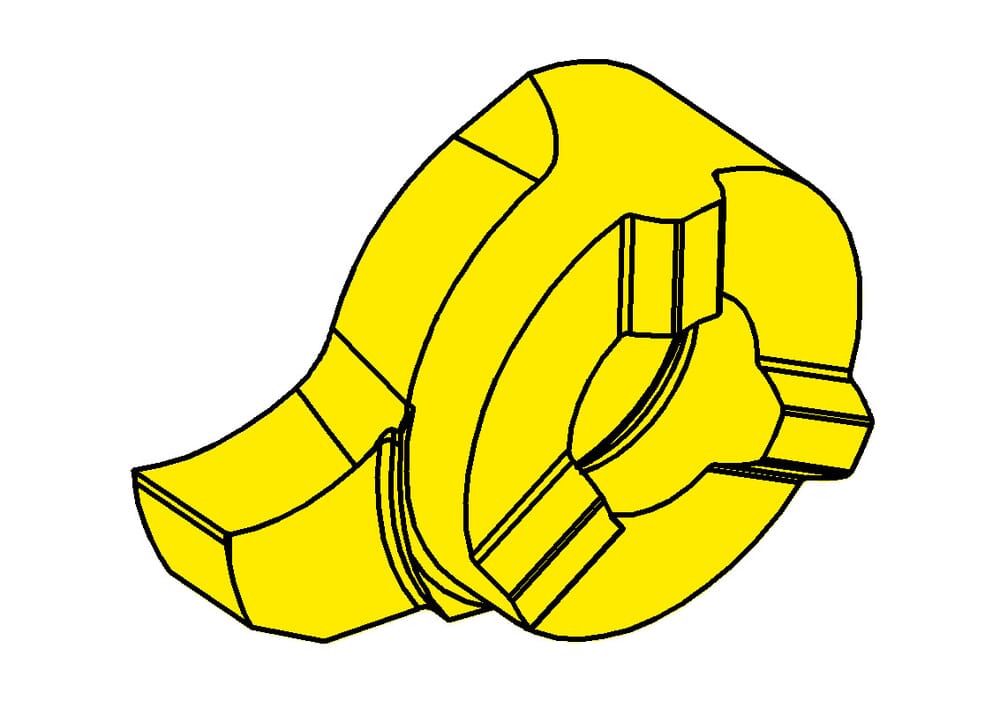

HORN Insert L116.0200.00 EG55 for Milling and Turning
Please note:Technical instructions
Number of teeth (Z)
1
St.
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Width of groove (w)
2
mm
Katalog_SSC
116110L
DIN_SSC
HORN-11611084L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.3
mm
Head size (a)
15.7
mm
Cutting diameter (Ds)
20.4
mm
| Downloads | |
|---|---|
| L116020000_20230112_194011314.STP | Download |
| L116020000_20210627_181202327.DXF | Download |
| Download all files | |
