L116.0300.00 TN35
Inserts
Part number L116030000TN35

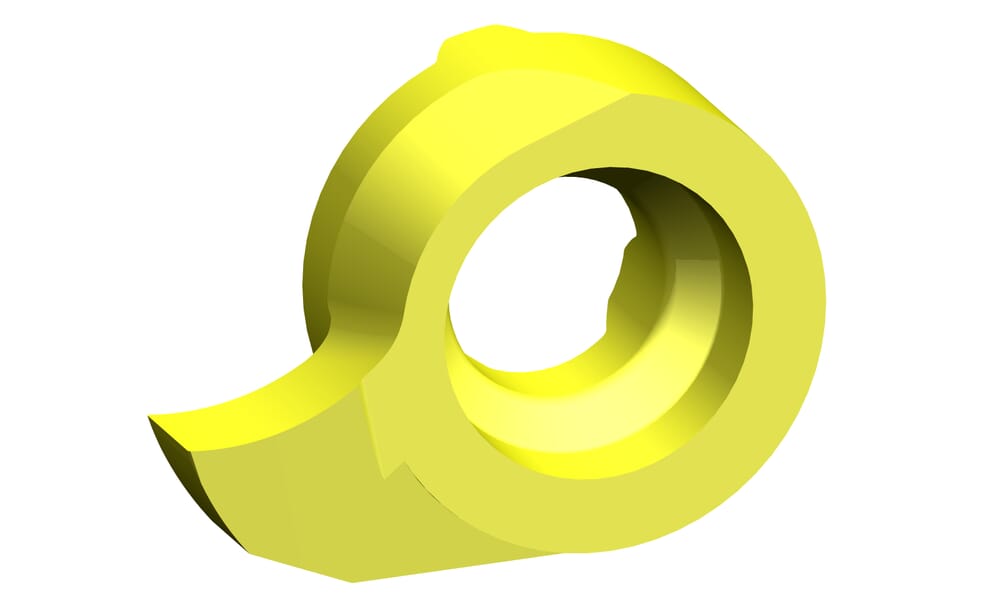

HORN Inserts L116.0300.00 TN35 for Milling and Turning
Please note:Technical instructions
Width of groove (w)
3
mm
Number of teeth (Z)
1
St.
Smallest bore diameter (Dmin)
16
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
10.2
mm
Cutting diameter (Ds)
20.4
mm
Katalog_SSC
116110L
DIN_SSC
HORN-11611084L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.3
mm
Head size (a)
15.7
mm
| Downloads | |
|---|---|
| L116030000_20230112_194355719.STP | Download |
| L116030000_20210627_181608698.DXF | Download |
| Download all files | |
